    TIG MIG Assembly H Beam Welding Production Line Machine With Automatic Spot Welding

    Ask Lasest Price
    Brand Name : Yaoqiang
    Model Number : Z15
    Certification : CE ISO
    Price : 13000USD
    Payment Terms : L/C, T/T
    Supply Ability : 10PCS/month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    TIG MIG Assembly H Beam Welding Production Line Machine With Automatic Spot Welding

    Web height: 160-1500/1800/2000mm
    Web thickness: 3-40
    Flange width: 160-800mm
    Flange thickness: 6-40mm
    Workpiece length: 4000-20000mm
    Assembly spped: 0.5-6 m/min
    Electrical assembly: the brand is AC converter
    Total power: 10KW
    Power supply: AC 380V 50HZ 3phsaes

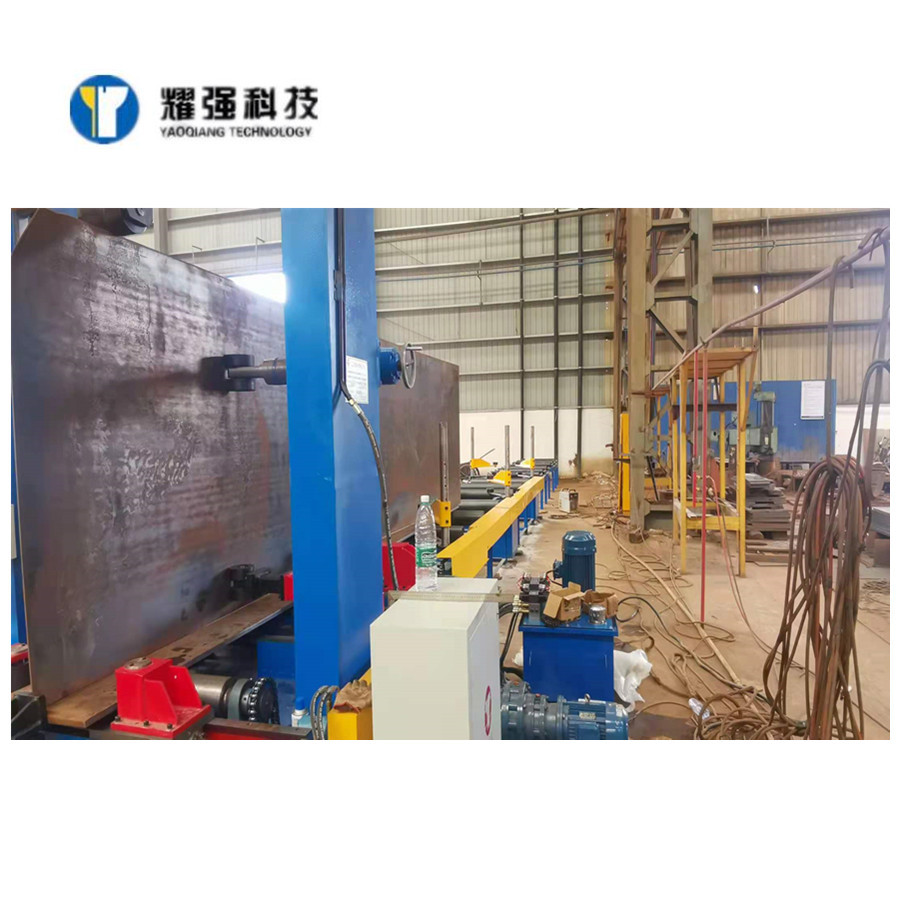

    Z15 H beam assembly machine

    This machine is mainly composed of the following parts:

    1. the main engine assembly,

    2. pull rod on the system,

    3. the input roller,

    4. output roller,

    5. hydraulic system assembly,

    6. electric control system.

    TIG MIG Assembly H Beam Welding Production Line Machine With Automatic Spot WeldingTIG MIG Assembly H Beam Welding Production Line Machine With Automatic Spot WeldingTIG MIG Assembly H Beam Welding Production Line Machine With Automatic Spot Welding

    Scope of supply and composition

    A.Group vertical machine body:

    -the main engine assembly, web clamp, flange plate clamping, etc..
    B.input and output roller assembly:
    -roller of 2.6m/ * 6 festival festival, rod system etc.
    C.hydraulic system:
    -pump station, oil motor, high pressure hose, hydraulic cylinder, etc..
    D. automatic spot welding system:
    -350A CO2 welding power source*2pcs.welding, mechanical tracking mechanism, the hydraulic cylinder clamping mechanism etc. (manual welding without the equipment, automatic welding).
    E.electric control system:
    -electric cabinet, AC inverter, etc..
    F.spare parts:
    -O button 3. The HH54PDC24V relay 2. The molten core 4A, each 3 6A.

    TIG MIG Assembly H Beam Welding Production Line Machine With Automatic Spot WeldingTIG MIG Assembly H Beam Welding Production Line Machine With Automatic Spot Welding
