HB-50 Steel Pipe 5000kg Welding Positioner 220V 380V

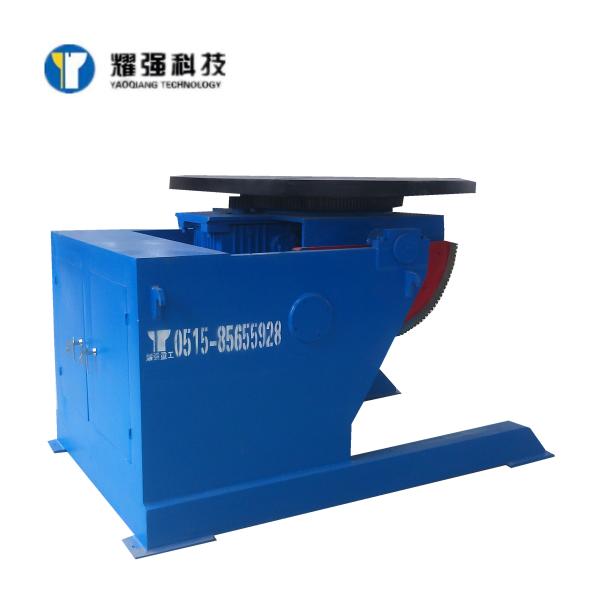

HB-50 Steel Pipe Welding System/Welding Positioner/Chuck Table/Welding Center Machines

Welding positioner can lift, turn and rotate the work piece to make the metal work-piece in the best welding position. We produce tilt type, elevator type, double column rotary type and others. The welding positioner we produced can be matched with welding manipulator to become welding centre, and can also be matched with robotic machine to realize automatic welding operation.

Characters:
Welding positioner is generally made of rotary table, flip mechanism and electric control system, through flipping and rotation of the worktable to made the workpiece fixed to it reaching the desired angle for welding and assembly. Worktable rotary speed is frequency variable speed control type, and can obtain the optimum welding speed.
Because of eccentricity and center of gravity distance, for workpiece that is longer and more position offset, it is needed to select slightly larger models. Standard welding positioner can not meet all kinds specifications of workpiece, so when you choose the product, it is required to provide the workpiece shape and weight, as well as processing techniques, we will provide the appropriate solution for reference.

The HB series machine is fixed type. The working table has self-lock function.
HB-50 Technical Parameters:
(1)Max. Loading Weight 5000 kg
(2)Overturning Velocity 0.05~0.5 rpm
(3)Size of Working Table 1500 mm
(4)Turningover Velocity 0.2rpm
(5)Turning Angle 0~120°
(6)Turning Motor Power 2.2kW
(7)Overtuining Motor Power 3kW
(8)Max Gravity Distance 400mm
(9)Max Eccentricity 200mm
(10)Max Rotating Diameter When 90° 2100mm
(1)Max. Loading Weight 5000 kg
(2)Overturning Velocity 0.05~0.5 rpm
(3)Size of Working Table 1500 mm
(4)Turningover Velocity 0.2rpm
(5)Turning Angle 0~120°
(6)Turning Motor Power 2.2kW

(7)Overtuining Motor Power 3kW
(8)Max Gravity Distance 400mm
(9)Max Eccentricity 200mm
(10)Max Rotating Diameter When 90° 2100mm

For special customer need and work piece technics requirement, our factory can also design and manufacture accordingly.

Model	HB	HB	HB	HB	HB	HB	HB	HB	HB	HB
Model	1	3	6	10	20	30	50	80	100	200
Max. load kg	100	300	600	1000	2000	3000	5000	8000	10000	20000
rotate speed rpm/min	0.3-3	0.2-2	0.09-0.9	0.09-0.9	0.05-0.5	0.05-0.5	0.05-0.5	0.02-0.2	0.02-0.2	0.02-0.2
turning speed rpm/min	by manual	by manual	0.42	0.4	0.35	0.23	0.2	0.2	0.2	0.15
turret turning angle °	0-90	0-90	0-90	0-90	0-120	0-135	0-135	0-135	0-135	-45-90
turret diameter mm	φ400	φ600	φ1000	φ1200	φ1250	φ1400	φ1500	φ1600	φ2000	φ2500
rotate motor power kW	0.18	0.18	0.75	1.1	1.1	1.1	1.5	3	3	5.5
turning motor power kW	/	/	0.75	1.1	1.5	2.2	3	3	4	11
speed adjustment	AC frequency converter stepless speed adjustment
max eccentricity mm	100	150	150	150	200	200	200	200	200	200
max distance of gravity centre mm	200	200	200	200	250	300	300	400	500	600

Automatic Portable Welding Positioner with Chuck Welding Table
