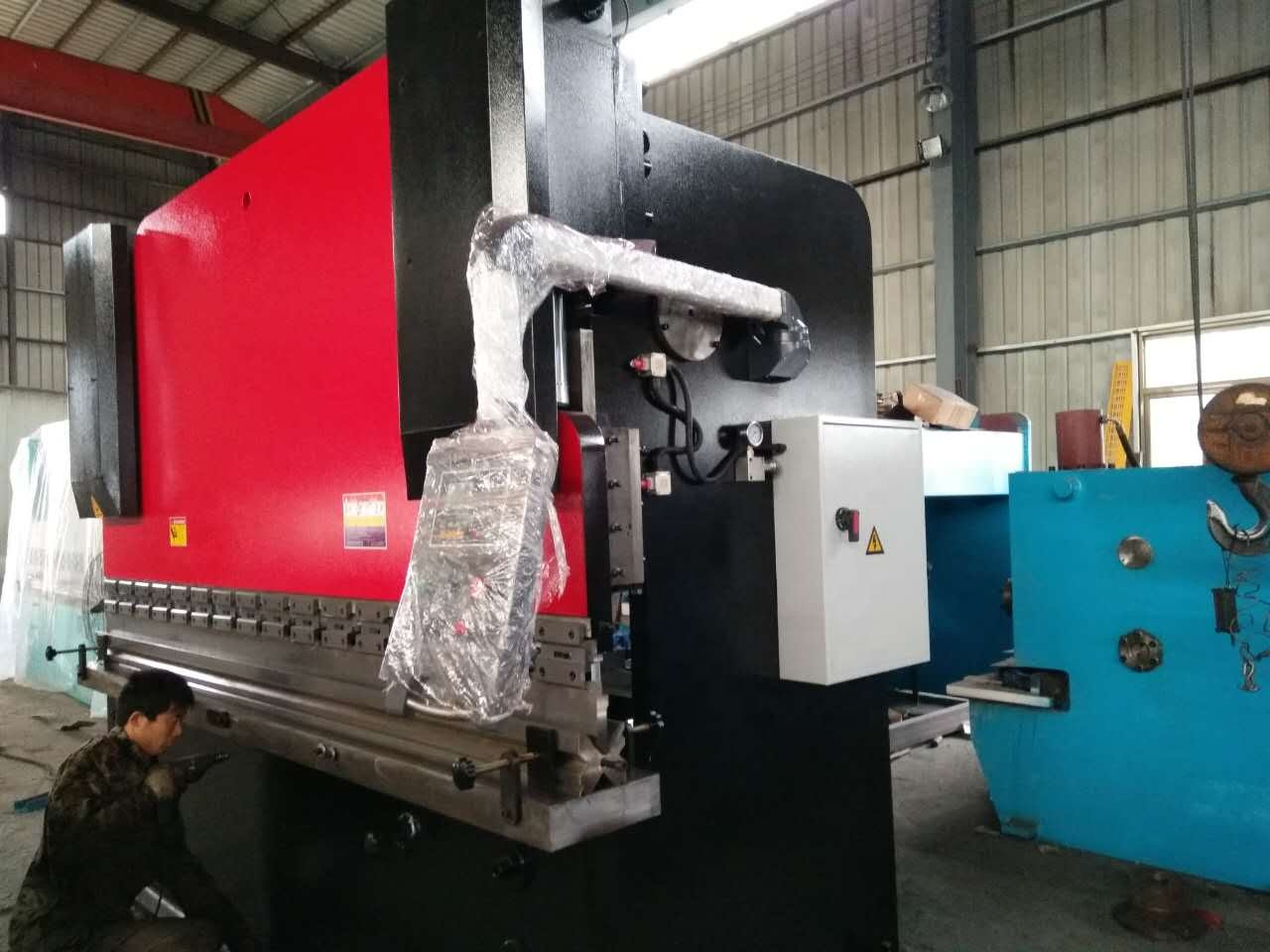

4-12m CNC Hydraulic Plate Sheet Steel Bending Rolling Machine

1.Slider part: the slider part consist of the slider, the fuel tank and mechanical block fine-adjust structure. Slider stroke length can be adjusted. To those short work piece, they can be adjusted by mechanical slider, so that it can significantly improve efficiency. The left and right cylinders are fixed to the frame, and the piston makes slider do the up and down movement by a hydraulic system.

2.Table parts: Working table is controlled by the button box which in front of the working table. The motor drives the gear rack to move back and forth , and the digital displays the distance of moving. The front and back position have switch limit.

3.Gauge parts: Gauge has motor driving. Two screw driven synchronously by sprocket movement. Counter displays the block size, and you can manually fine-tuning.

4.Synchronization System: The machine consists of torsion and arm which make the mechanical synchronization mechanism. It has simple institutional , reliable performance, and high synchronization accuracy.

Main features:

1. Totally steel welding structure. Internal stress eliminated via vibration aging, with good strength and stability.
2. Rate of flow from servo proportional valve, and data from electronic meter, together control the sliders Y1&Y2 synchronous movement.
3. Slide repetition accuracy is 0.01mm, the bending angle is 0.5 º
4. Slider low and fast speed switch position and up limit stop position are sensed by grating ruler, and which feedback to computer and then adjust.

Equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.
