    Longitudinal CNC Plasma Flame Cutting Machine 1530 Portable

    Ask Lasest Price
    Brand Name : YAOQIANG
    Model Number : CUT-1530
    Certification : CE ISO
    Price : US $1,200-1,600/ Piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100pcs/month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

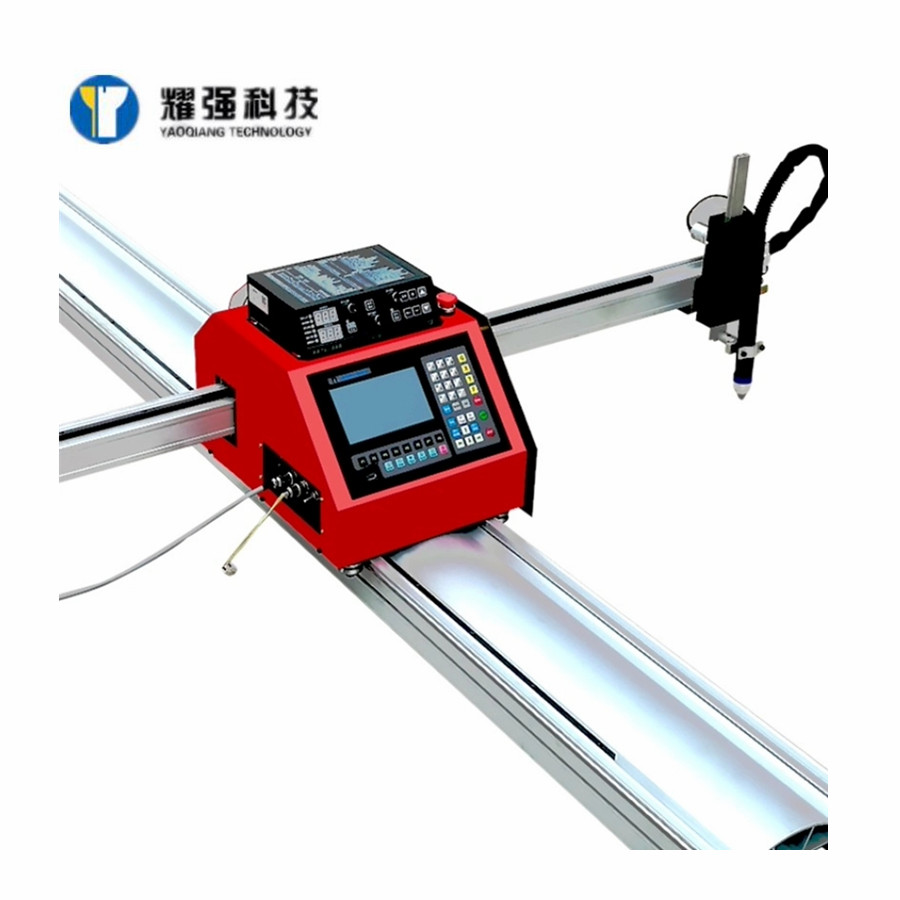

    Longitudinal CNC Plasma Flame Cutting Machine 1530 Portable

    1530 Portable CNC Plasma Gas longitudinal guide rail Cutting Machine


    Portable CNC cutting machine has a small and exquisite micro structure, which has the advantages of high automation, convenient use, high precision, high reliability, low price, and very simple operation and maintenance.

    Main Technical Performance Indexes of products
    ModelCNC-1530
    Effective Cutting area (mm)1500x3000
    Cutting Thickness(mm)Flame:5-60mm, Plasma:1-25mm
    Cutting Speed (mm/min)50-3800
    Running speed (mm/min)12000
    Cutting ModeFlame/plasma/flame and plasma
    Drive Motor Numberstepper motor , single-side
    Cutting Torch NumberCustomize according user's need
    NC ControllerLANSUN or Shanghai Or Beijing
    Programming softwareStartcam or Fastcam
    Operation languageEnglish or Chinese or Russian
    Voltage220V/380V
    Plasma generator63A,100A ,120A , 200A ect . China , USA brand
    Power voltage3×380V±10% or up by user's local condition
    SurroundingsVentilation, no big shake
    Humidity<90%, no condensation
    Working temperature- 10°C -45°C

    The base of this portable cnc plasma cutting machine is assembled from high-strength aluminum alloy, with good stability, no deformation, and beautiful appearance.

    The new combined chassis structure design, the cross arm and the main console, as well as the mechanical and numerical control parts can be decomposed and combined.

    The outside of the chassis is equipped with a USB interface, a control line interface, and a plasma arc interface to ensure the stable operation of the machine.
