    Z20 H Beam Flange Straightening Machine 380V 2000mm

    Ask Lasest Price
    Brand Name : Yaoqiang
    Model Number : Z20
    Certification : CE ISO
    Price : US $12,000-19,000/ Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets/Month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

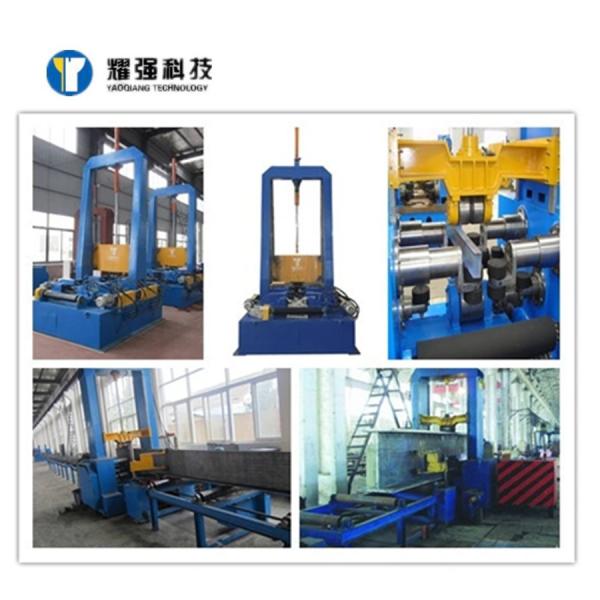

    Z20 H Beam Flange Straightening Machine 380V 2000mm

    PLC Control Z20 H Beam Flange Assembling Machine with Auto Spot Welding


    The H-beam assembly machine adopts PLC programmable controller to control the whole process of H-beam clamping, centering and positioning, and spot welding, with fast speed and high efficiency.


    This machine has no voltage protection device, variable cross-section H-shaped steel assembly automatic spot welding, and the welding gun adopts a mechanical hydraulic tracking method, which is easy to operate and good in quality.


    H-beam production line composition
    Plasma cutting-assembly with spot welding-gantry welding-mechanical or hydraulic straightening machine


    Specification

    ModelZ15Z18Z20Z25Z30
    Suitable web height mm200-1500200-1800200-2000200-2500200-3000
    Suitable web thickness mm6--505-506-506-506-50
    Suitable flange width200-800200-800200-800200-1000200-1000
    Suitable work-piece length mm4000-15000 or on request
    Assembly speed mm/min0.5-6m/min
    Machine power kW11.7
    Power supplyAC380V, 50HZ, 3P or tailor made
    Above are our standard models and parameters, and it can be designed and manufactured on request.

    *We reserve the right to alter specifications without prior notice.
