    Manual Flange Straightening Machine 200-800mm , I Beam Welding Machine

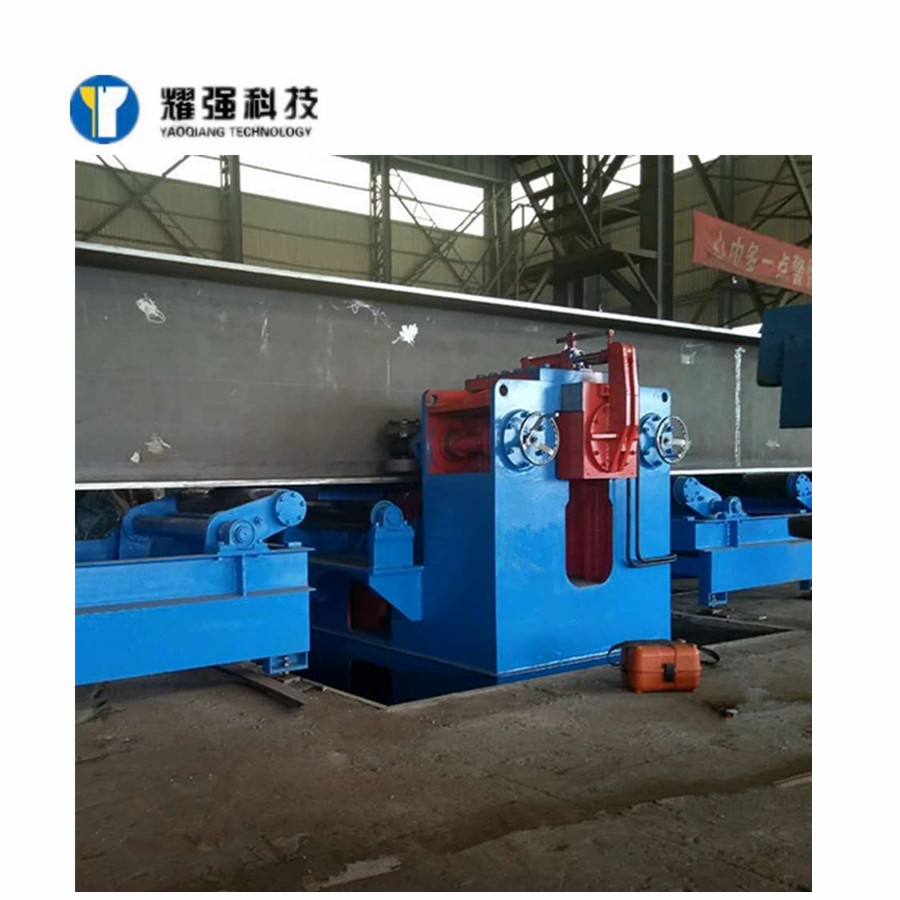

    HYJ-800 Manual type flange straightening machine Mechanical type for H beam I beam


    Flange of welded I-beam or H-beam will inevitably produce bending during heating process.


    H-beam flange straightening machine is a special equipment that be used to correct the welding beam, H-beam flange. It is simple, fast and efficient to work.


    Beam straightening machine can be widely used in metallurgy buildings, metal structures, hydraulic machinery, industrial installations and other industries.


    Specification:

    ModelHYJ-600HYJ-800YTJ-60BYTJ-80B
    Flange edge width150-600mm200-800mm180-800mm600-1000mm
    Flange edge thickness≤20mm≤40mm≤60mm≤80mm
    Min web height160mm350mm350mm500mm
    MaterialQ235AQ235AQ345AQ235Mn
    Speed5.7m/min18m/min6.37m/min6m/min
    Engine power9kw24.2kw37kw44kw
    Outside dimension(mm)3355×890×15733500×1500×17003120×4100×21004700×25001×2400
    Weight7000kg9000kg25000kg28000kg

    Straightening Principle:


    The drive roller constituting the roller means and rolling-type lever principle, is to make the correction by rolling the flange type, produced a bending deformation.


    After straightening of elastic recovery reaches the desired shape, in order to achieve continuous evolution beam flange straightening.


    Equipment composition:


    This beam flange mechanical straightening machine includes the drive motor, reducer, roller device, drive roller, pressure device, the guide roller, rack, base, base composition.


    The flange straightening machine is compact structure, light weight device, easy to operate, easy maintenance overhaul.

    Installation, adjustment, commissioning

    1.Cleaning, degreasing and decontamination before installation

    2. The base installed base by watering twice performed.

    3. The drive roll surface should be higher than the front and rear roller surface.

    4. commissioning before the transmission, moving parts, subject to manual inspection until flexible without jamming, direction empty commissioning.

    5. After commissioning empty, then load test.

    6. Before commissioning empty, add oil response in each gear unit.
