Brand Name : | YAOQIANG |
Model Number : | HGZ-01 |
Certification : | CE ISO |
Price : | US $350-4,000/ Piece |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 50pcs/month |
Delivery Time : | 10 days |

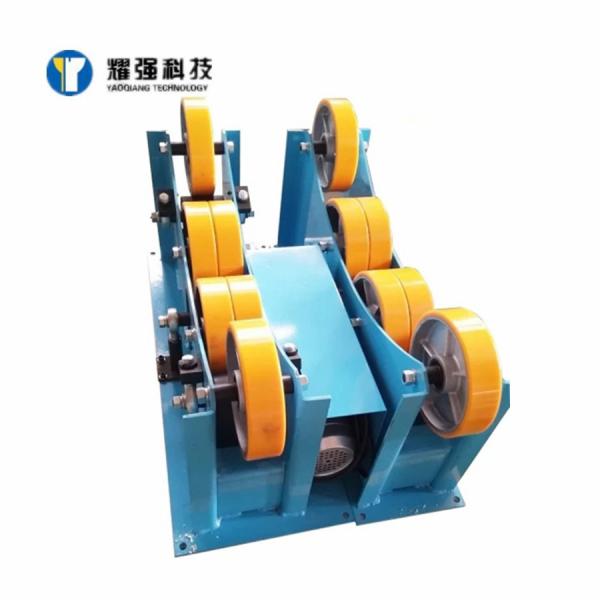

Pipe Circular Seam Welding Turning Roller Welding Rotator Max Loading 1000kg
The 1000kg self-aligning welding turning roll consists of a set of
active roll holders and a set of passive roll holders.
The driving roller is driven by a motor and a reduction gear to
realize stepless speed change.
Technical parameter:
Model | HGZ-01(Loading:1Ton) |
Input voltage | AC220V, 50/60Hz |
Bearing capacity | 3,000kg |
Operating speed | 100-1900mm/min |
Applicable workpiece diameter | Ф30-Ф1200mm |
Drive motor | 220V, 370W |
Rubber roller specification | 50mm(W)×Ф200mm |
Boundary dimension of driving wheel | 850*330*450mm |
Boundary dimension of driven wheel | 850*330*450mm |
Speed adjustment mode | Frequency control (external driven remote-control box) |
The main features of the light welded rotor HGZ-01:
1. Using Hengju control motor, the load capacity is larger, the low
speed stability is better, and the speed range is wide.
2. Polyurethane wheel design, heat-resistant, wear-resistant,
non-slip, increase the applicable diameter of the workpiece.
3. The position of the grinding wheel is adjustable to adapt to a
larger range of workpieces.
4. The structure is compact, simple and light, suitable for various
working environments
5. The pedal and manual control box can control the rotation speed,
on/off, forward and reverse of the roller frame in real time.
6. The separated structure is suitable for long workpieces of any
length.
![]() |
