Stepless Speed Control Auxiliary Welding Manipulator 4-6m

Ask Lasest Price
Brand Name :	YAOQIANG
Model Number :	HJ4040
Certification :	CE ISO
Price :	$5,000.00 - $8,000.00/ Set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30pcs/month
Delivery Time :	10 days

Add to Cart

Product Details
Company Profile

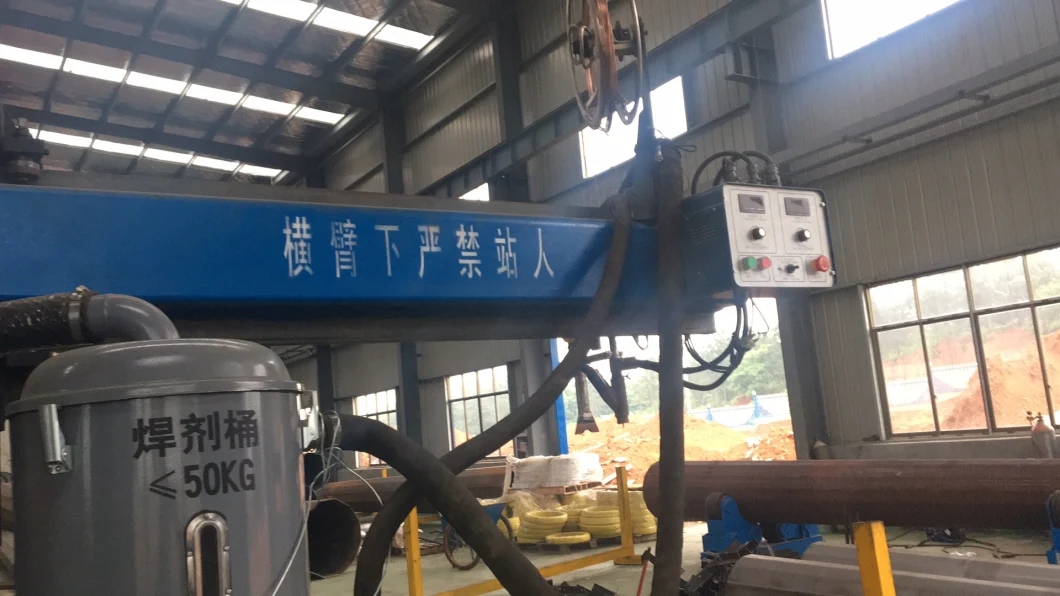

Stepless Speed Control Auxiliary Welding Manipulator 4-6m

AC Frequency Converter Stepless Speed Control Auxiliary Welding Equipment Manipulator

This manipulator is also named TIG/MIG automatic welding column arm/welding manipulators.

It is used for pipe,tank and vessel.

Features of automatic welding column arm:
An automatic welding manipulator that can use a variety of welding power sources (TIG MIG MAG).
The cross arm telescopic adopts AC frequency conversion stepless speed regulation, and the operation is stable..
The machine head is equipped with an electric cross sliding table, which can adjust the welding position.
The boom is equipped with anti-broken chain and anti-skid devices to ensure safety. .
The braking device can ensure that the column works in a safe environment.
Accept customized manipulator requirements.
Automatic flux feeding, recycling device, wire feeding device, working platform and chair (optional).

Specifications:

Model	HJ2020	HJ3030	HJ4040	HJ4050	HJ5060	HJ6060	HJ7070	HJ8080
Effective arm extension stroke m	2-3	3-5	4-6	4-7	4-8	4-9	7-9	4-10
Effective arm vertical stroke m	2	3	4	4	5	6	7	8
Arm extension speed mm/min	120-1200 AC frequency converter stepless speed adjustment
Arm elevation speed mm/min	500				1000
Column rotary angle °	±180 by manual
Arm end load kg	100				200
Vehicle travel speed mm/min	2000
Vehicle slide center distance mm	1200				1560
Cross shape adjusting unit mm	up and down 100, left and right:100

MZ-1000 submerged arc welding machine

MZ-1000 submerged arc welding machine
No.	Name	Unit	MZ-1000
1	output characteristics		Drop feature
2	The power input voltage/frequency	Hz	three phase 380V±10%/50
3	output rating	kW	44
4	Rated power current	A	83
5	Rated Duty Cycle		100%
6	Current Adjustment Range	A	60-1000
7	voltage setting range	V	20-50
8	Output noload voltage	V	Submerged arc welding:90±10 manual metal-arc welding:75±5
9	full load efficiency		92%
10	Full load efficiency		0.88
11	Diameter of Welding Wire	mm	2-5
12	wire feed speed	cm/min	40-450

MZ-1000 submerged arc welding machine

MZ-1000 submerged arc welding machine
No.	Name	Unit	MZ-1000
1	output characteristics		Drop feature
2	The power input voltage/frequency	Hz	three phase 380V±10%/50
3	output rating	kW	44
4	Rated power current	A	83
5	Rated Duty Cycle		100%
6	Current Adjustment Range	A	60-1000
7	voltage setting range	V	20-50
8	Output noload voltage	V	Submerged arc welding:90±10 manual metal-arc welding:75±5
9	full load efficiency		92%
10	Full load efficiency		0.88
11	Diameter of Welding Wire	mm	2-5
12	wire feed speed	cm/min	40-450

Flux recovery delivery all-in-one machine

Flux recovery delivery all-in-one machine
NO.	Name	Unit	MZ-1000
1	Model		YS-HS150A
	Motor power	KW	4
2	Bleed pressure	MPa	0.2-0.8
3	The largest recycled	KG	80
4	Vacuum degree	KPa	14.4
