CE Column And Boom Welding Manipulator Automatic 2-8m

Ask Lasest Price
Brand Name :	YAOQIANG
Model Number :	HJ
Certification :	CE ISO
Price :	US $1,300-23,000/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	25pcs/month
Delivery Time :	20days

Add to Cart

Product Details
Company Profile

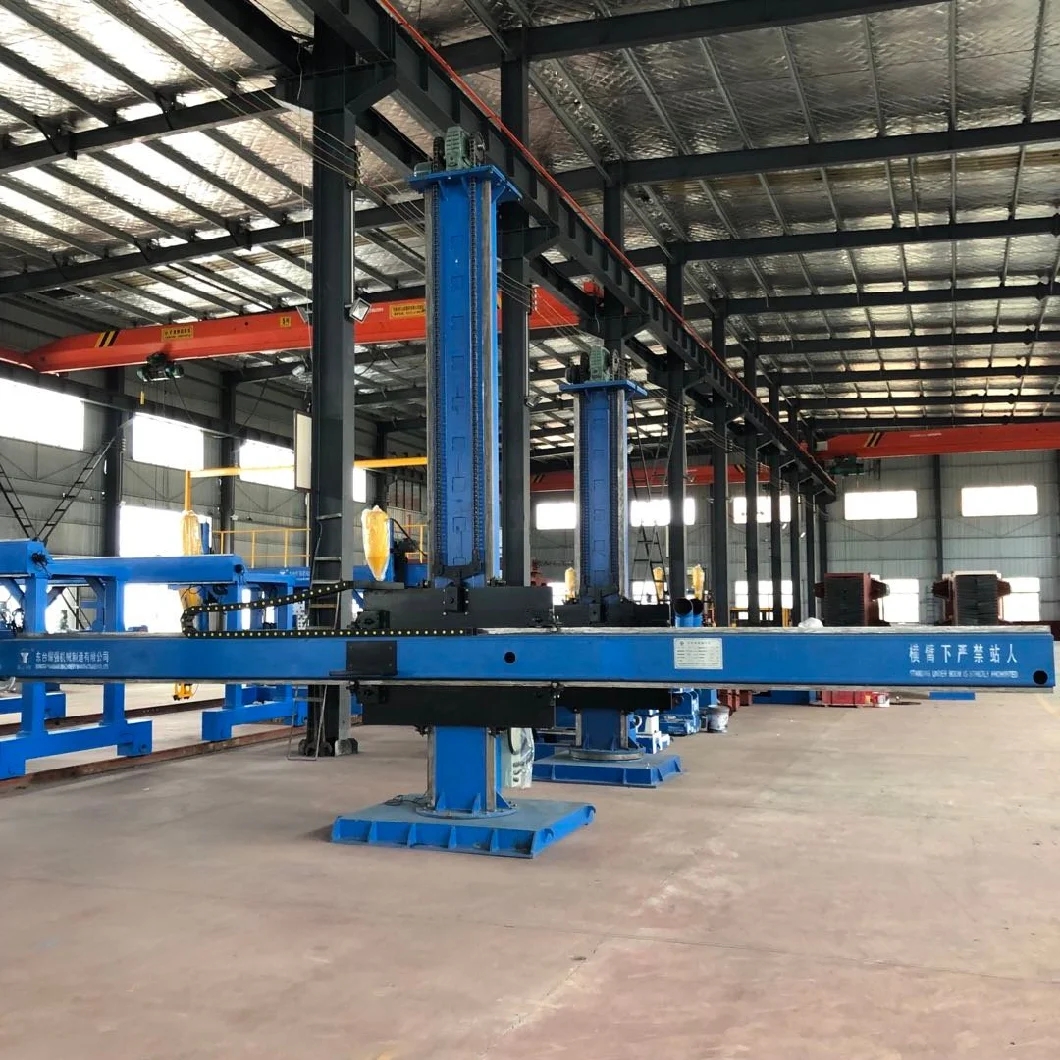

CE Column And Boom Welding Manipulator Automatic 2-8m

CE Certificate Automatic Cylinder pipe Column and boom Seam Welding Manipulator

Welding manipulator is working together with roller frame, positioned and etc. To weld the work piece inside and outside circular seam, corner seam, outside and inside longitudinal seam. According to customer specific need, various structures, welders, and assistant devices like tracking, sway, monitor, flux recovery and transmission are optional for users. Besides, we can also design and manufacture the exact type suited for users too.

Structure: Fixed type, fixed and rotary (manual) type, mobile and rotary type.
Function: The cross arm effectively stretch and lift. The welding head can adjust up and down, left and right. Standing column turns, vehicle moves.
The cross arm operation accuracy: ≤ 1mm/1000m.
Welder optional: Automatic SAW, CO2 MAG/MIG, TIG welder.
Optional function: Flux recovery and transmission machine, video monitor, welding seam sway, automatic tracking, arc length control, platform for worker.

Optional function: Flux recovery and transmission machine, video monitor, welding seam sway, automatic tracking, arc length control, platform for worker.

Model	HJ2020	HJ3030	HJ3040	HJ4050	HJ5060	HJ6060	HJ7070	HJ8080
effective arm extension stroke m	2-3	3-5	4-6	4-7	4-8	4-9	7-9	4-10
effective arm vertical stroke m	2	3	3	4	5	6	7	8
arm extension speed mm/min	120-1200 AC frequency converter stepless speed adjustment
arm elevation speed mm/min	500				1000
column rotary angle °	±180 by manual
arm end load kg	100				200
vehicle travel speed mm/min	2000
vehicle slide center distance mm	1200				1560
cross shape adjusting unit mm	up and down 100, left and right:100

Equipment composition of welding manipulator
1, HJ6060 type welding machine (moving type): 1 set
2,Mobile trolley walking parts 1 set
3, MZ-1000 automatic submerged arc welding machine 1 set
4, flux recovery conveyor integrated machine 1 set
5, electrical control part

Main technical parameters

No.	Item		Unit	HJ6060
1	Equipment size			moving type(without rail)
2	Arm lift stroke		mm	6000
3	Arm extension stroke		mm	6000
4	Arm guide rail width		mm	35
5	Standing column guide rail width		mm	35
6	Guide wheel seat supporting way			Rectangle guide rail, three facet supporting.
7	Arm extension speed		mm/min	120-1200
8	Drive way			Rack and pinion pair
9	Speed adjustment way			AC frequency stepless adjustment
10	Arm extension motor power		kw	0.55
11	Arm lifting speed		mm/min	500
12	Drive way			chain wheel and chain pair
13	Arm front end load capacity		kg	300
14	Control wire length		m	15
15	Equipment structure type			movable and rotary type
16	Cross precision adjustor stroke	Up and down	mm	100
16	Cross precision adjustor stroke	Left and right	mm	100
17	cylinder diameter adapted		mm	Φ500∽Φ6000
18	Cross slide		mm	±50
19	Welding speed			100-1000mm/min
