    5000kg Welding Rotator

    Ask Lasest Price
    Brand Name : YAOQIANG
    Model Number : HGK-5T
    Price : USD3,000~10,000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 set/month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    5000kg Welding Rotator

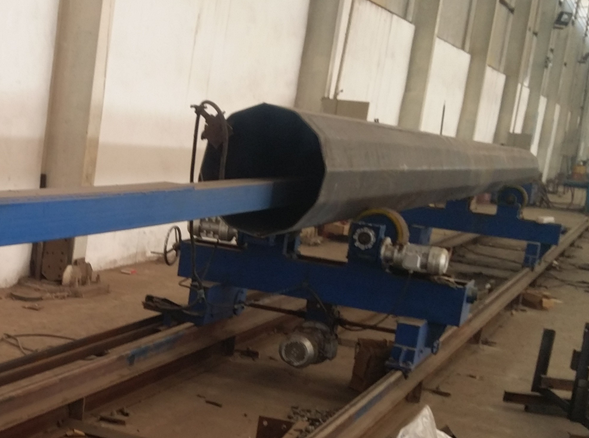

    HGK-5T Adjustable Moving Type Electric Lifting Welding Roller Frame For Power Pole


    HGK-5T adjustable welding roller frame is mainly composed of active roller frame, passive roller frame, wire rod adjusting seat and electric control system.


    The active (passive) roller frame is fixed on the wire rod adjusting seat separately.


    According to the size of the workpiece, the center distance of the two groups of rollers can be adjusted appropriately.


    Ensure smooth and efficient work of supporting and rotating workpieces.

    No.ItemUnitSpecifications
    1structure typeFixed
    2Max loadKG5000
    3Applicable workpiece rangeMM250-1500
    4Rubber roller diameterMM250
    5Roller linear speedMM/MIN100-1000
    5Matching motor powerKW0.75
    6Roller speed regulation modeAc variable frequency electrodeless speed regulation
    7Roller materialNatural rubber or polyurethane
    8Up down modeMotor lift
    9Up down speedMm/minconstant speed
    10Moving modeStepping motor precision reducer
    11road wheelmm150
    12Guide rail type18KG/m User owned
    13speed of travelMm/min300-3000
    14control methodMotor driver

    Adjustable roller wire rod regulating seat can walk on the guide rail again, and its speed is the welding speed of the longitudinal joint in the power rod.


    The walking parts are composed of step motor driving precision reducer, walking wheel and so on.


    The speed of Welding turning rotators walking is adjustable, the active roller seat and the driven wheel seat can walk by electric, and the driving speed of the two parts is consistent and synchronous.
