2-8m Column And Boom Welding Manipulator With 360 Degree Rotation

Ask Lasest Price
Brand Name :	YAOQIANG
Model Number :	HJ
Certification :	CE ISO
Price :	US $1,300-33,000/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30pcs/month
Delivery Time :	10 days

Add to Cart

Product Details
Company Profile

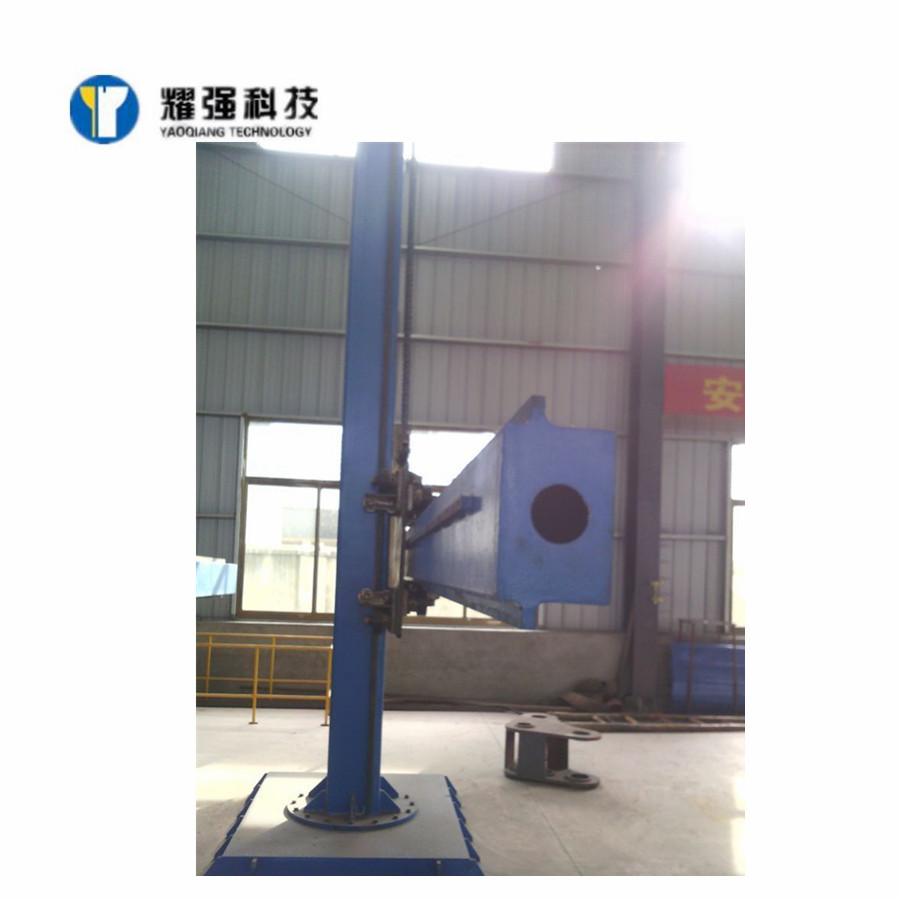

2-8m Column And Boom Welding Manipulator With 360 Degree Rotation

High Efficiency Column And Boom Welding Manipulator With 360° Rotation

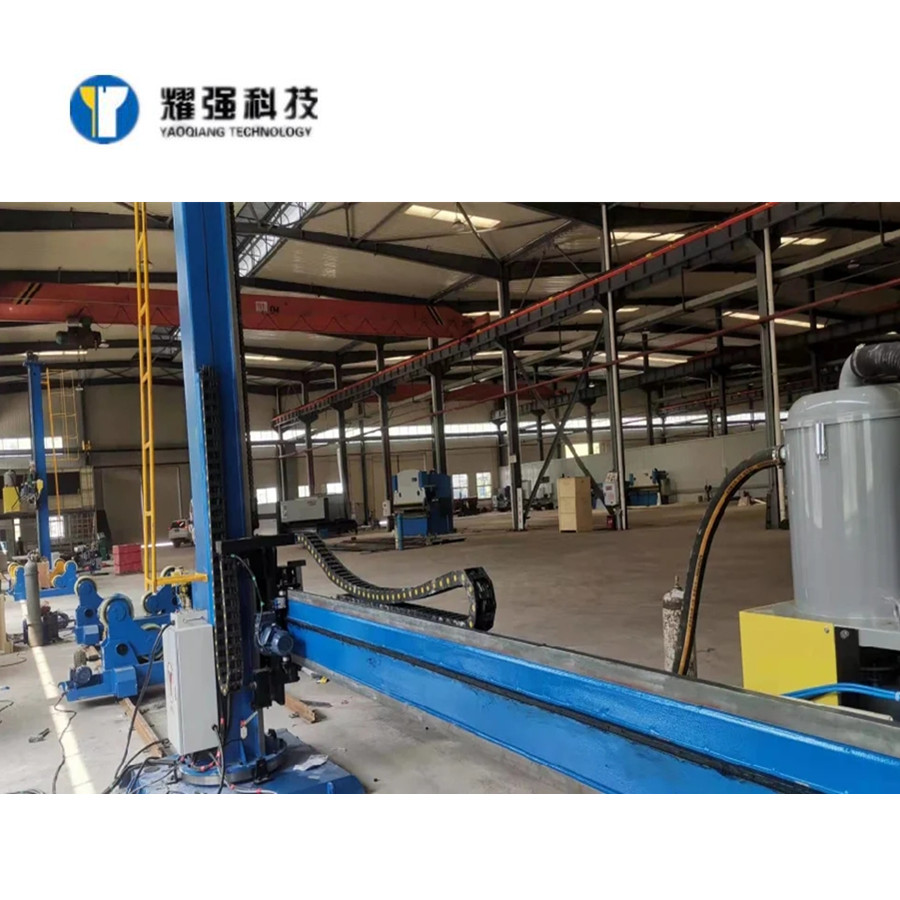

Automatic Welding manipulator has a wide use in pipe cylinder tank weld processing.
It can be worked together with roller frame, turntable with flux recovery system.
To weld the work piece inside and outside circular seam, corner seam, outside and inside longitudinal seam.
According to customer specific need, various structures, welders, and assistant devices like tracking, sway, monitor, flux recovery and transmission are optional for users.

Besides, we can also design and manufacture the exact type suited for users too.
Structure: Fixed type, fixed and rotary (manual) type, mobile and rotary type.

Structure: Fixed type, fixed and rotary (manual) type, mobile and rotary type.

Specification:

Model	HJ2020	HJ3030	HJ3040	HJ4050	HJ5060	HJ6060	HJ7070	HJ8080
effective arm extension stroke m	2-3	3-5	4-6	4-7	4-8	4-9	7-9	4-10
effective arm vertical stroke m	2	3	3	4	5	6	7	8
arm extension speed mm/min	120-1200 AC frequency converter stepless speed adjustment
arm elevation speed mm/min	500				1000
column rotary angle °	±180 by manual
arm end load kg	100				200
vehicle travel speed mm/min	2000
vehicle slide center distance mm	1200				1560
cross shape adjusting unit mm	up and down 100, left and right:100

Product details:
Guide wheel seat support--Rectangular guide (three-side support)
Drive mode--Rack and pinion
Control line length--15m
