    500-6000mm Automatic Seam Welding Machine With TIG Welder

    Ask Lasest Price
    Brand Name : yaoqiang
    Model Number : HJ series
    Price : US $1,300-23,000/ Piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    500-6000mm Automatic Seam Welding Machine With TIG Welder

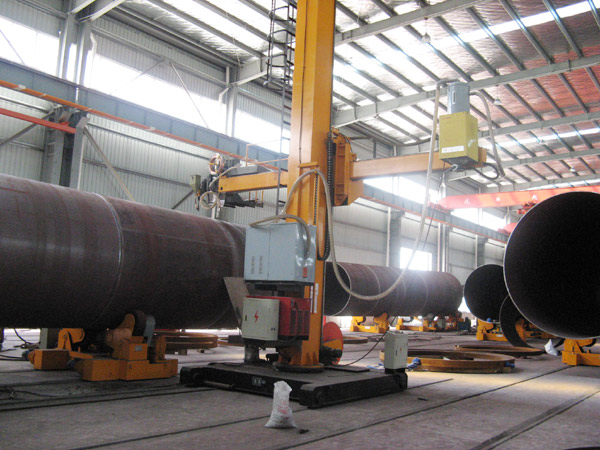

    HJ8080 Tube Inside and Outside Automatic Seam Welding Machine with TIG Welder
    Product Features

    Here are some features of Welding Manipulator:
    • The welding manipulator can be 3 in 1 controlled together with welding power, welding rotator or positioner according to clients' requests.

    • The column and boom adopt welding parts which adopt tempering post welding, then carry out fine machining which can ensure higher precision requirement.

    • Boom adopts square rail, horizontal stretch and retract adopts gear and rack transmission with high precision and stability.

    • Safety falling protective device is set for boom elevating.

    • There's cross slider for the welding torch equipped in front of the boom to realize welding torch cross adjust for going up, down, left, right.

    • There's ladder on the column, which is convenient for maintenance. It is equipped with the platform convenient for Welders to stay.

    • It can be equipped with a wireless remote control box according to clients' requests for convenience.

    500-6000mm Automatic Seam Welding Machine With TIG Welder

    Model HJ2020 HJ3030 HJ3040 HJ4050 HJ5060 HJ6060 HJ7070 HJ8080
    effective arm extension stroke m 2-3 3-5 4-6 4-7 4-8 4-9 7-9 4-10
    effective arm vertical stroke m 2 3 3 4 5 6 7 8
    arm extension speed mm/min 120-1200 AC frequency converter stepless speed adjustment
    arm elevation speed mm/min 500 1000
    column rotary angle ° ±180 by manual
    arm end load kg 100 200
    vehicle travel speed mm/min 2000
    vehicle slide center distance mm 1200 1560
    cross shape adjusting unit mm up and down 100, left and right:100


    Equipment composition of HJ6060 welding manipulator
    1, HJ6060 type welding machine (moving type): 1 set
    2,Mobile trolley walking parts 1 set
    3, MZ-1000 automatic submerged arc welding machine 1 set
    4, flux recovery conveyor integrated machine 1 set
    5, electrical control part

    Main technical parameters

    No. Item Unit HJ6060
    1 Equipment size moving type(without rail)
    2 Arm lift stroke mm 6000
    3 Arm extension stroke mm 6000
    4 Arm guide rail width mm 35
    5 Standing column guide rail width mm 35
    6 Guide wheel seat supporting way Rectangle guide rail, three facet supporting.
    7 Arm extension speed mm/min 120-1200
    8 Drive way Rack and pinion pair
    9 Speed adjustment way AC frequency stepless adjustment
    10 Arm extension motor power kw 0.55
    11 Arm lifting speed mm/min 500
    12 Drive way chain wheel and chain pair
    13 Arm front end load capacity kg 300
    14 Control wire length m 15
    15 Equipment structure type movable and rotary type
    16 Cross precision adjustor stroke Up and down mm 100
    Left and right mm 100
    17 cylinder diameter adapted mm Φ500Φ6000
    18 Cross slide mm ±50
    19 Welding speed 100-1000mm/min

    MZ-1000 submerged arc welding machine

    MZ-1000 submerged arc welding machine
    No. Name Unit MZ-1000
    1 output characteristics Drop feature
    2 The power input voltage/frequency Hz three phase 380V±10%/50
    3 output rating kW 44
    4 Rated power current A 83
    5 Rated Duty Cycle 100%
    6 Current Adjustment Range A 60-1000
    7 voltage setting range V 20-50
    8 Output noload voltage V Submerged arc welding:90±10
    manual metal-arc welding:75±5
    9 full load efficiency 92%
    10 Full load efficiency 0.88
    11 Diameter of Welding Wire mm 2-5
    12 wire feed speed cm/min 40-450

    500-6000mm Automatic Seam Welding Machine With TIG Welder500-6000mm Automatic Seam Welding Machine With TIG Welder
    Flux recovery delivery all-in-one machine

    Flux recovery delivery all-in-one machine
    NO. Name Unit MZ-1000
    1 Model YS-HS150A
    Motor power KW 4
    2 Bleed pressure MPa 0.2-0.8
    3 The largest recycled KG 80
    4 Vacuum degree KPa 14.4


    Main scope of supply

    No. Part Name Qty Main composition
    1 HJ6060 type welding machine (moving type) 1 Mobile trolley walking parts ,column combination, enhance parts, guiding parts, cross regulation parts, etc
    2 MZ-1000 automatic submerged arc welding machine 1 The welding power supply, wire head, control box, welding cables and control cables and so on
    3 Flux recovery delivery all-in-one machine 1 Flux recycling barrel, vortex air pump, solenoid valve, etc
    4 Electrical control components 1 The main control cabinet + wireless control box
    5 Delivery attached documentation 1 Product instruction for use, frequency converter operation manual, certificate of approval, shipping list and electrical schematic diagram, etc
