2-3m Pipe Welding Manipulator 3000mm With Saw Tig Mag Welding Machine

Ask Lasest Price
Brand Name :	YAOQIANG
Model Number :	HJ
Certification :	CE ISO
Price :	US $1,300-33,000/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30pcs/month
Delivery Time :	10 days

Add to Cart

Product Details
Company Profile

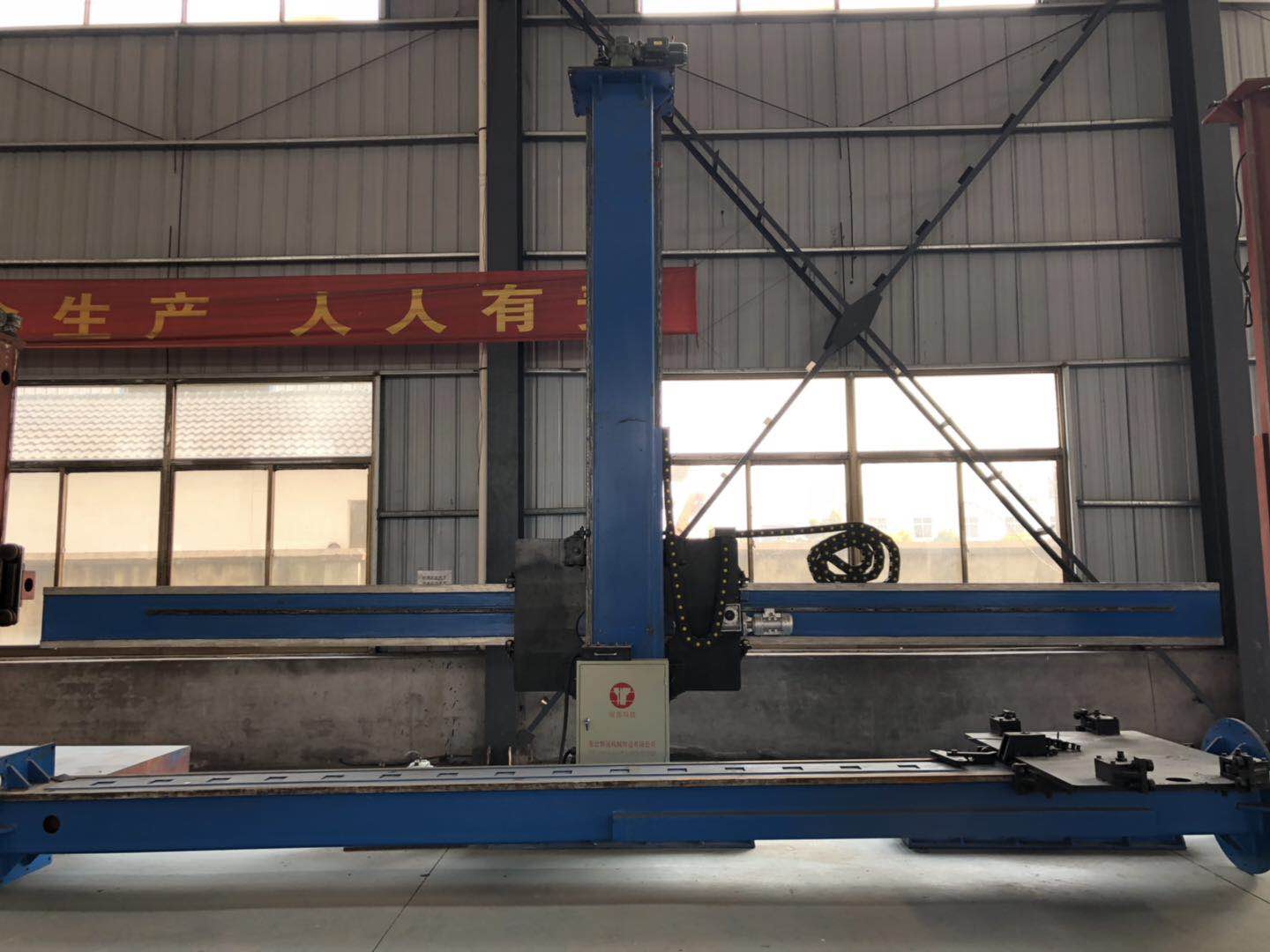

2-3m Pipe Welding Manipulator 3000mm With Saw Tig Mag Welding Machine

HJ Series welding manipulator for pipe welding with saw tig mag welding machine

Welding manipulator is working together with roller frame, positioned and etc.

To weld the work piece inside and outside circular seam, corner seam, outside and inside longitudinal seam. According to

Customer specific need, various structures, welders, and assistant devices like tracking, sway, monitor, flux recovery and transmission are optional for users.

Besides, we can also design and manufacture

Model	HJ2020	HJ3030	HJ3040	HJ4050	HJ5060	HJ6060	HJ7070	HJ8080
effective arm extension stroke m	2-3	3-5	4-6	4-7	4-8	4-9	7-9	4-10
effective arm vertical stroke m	2	3	3	4	5	6	7	8
arm extension speed mm/min	120-1200 AC frequency converter stepless speed adjustment
arm elevation speed mm/min	500				1000
column rotary angle °	±180 by manual
arm end load kg	100				200
vehicle travel speed mm/min	2000
vehicle slide center distance mm	1200				1560
cross shape adjusting unit mm	up and down 100, left and right:100

Our company:
Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e.The Wuxi Liandong U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.
So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is for producing.
