3T Rotary Welding Positioner Turntable Table 1400mm For Pipe Tank

Ask Lasest Price
Brand Name :	YAOQIANG
Model Number :	HB-30
Certification :	CE ISO
Price :	USD6000
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100pcs/month
Delivery Time :	10 days

Add to Cart

Product Details
Company Profile

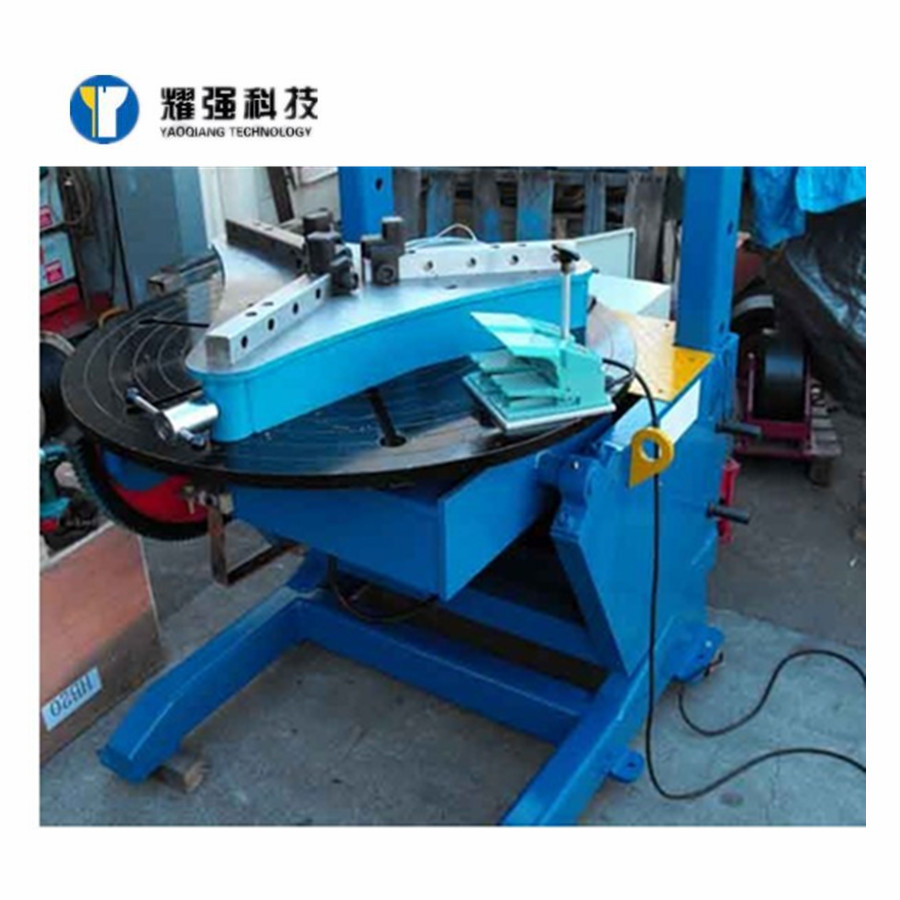

3T Rotary Welding Positioner Turntable Table 1400mm For Pipe Tank

3000kg Welding Positioner Matched With Welding Manipulator For Pipe Tank Welding

Specializing in manufacturing various metal cans, tubes and standard welding positioners with different functions, and can also be customized.

The standard welding positioner lifts, flips and rotates the workpiece so that the workpiece is in the best welding position.

We produce side type, lift type, double rotary type, etc.

The welding positioner we produce can be matched with a welding manipulator to become a welding center, and it can also be matched with a robot machine to automate welding operations.

Model	HB	HB	HB	HB	HB	HB	HB	HB	HB	HB
Model	1	3	6	10	20	30	50	80	100	200
Max. load kg	100	300	600	1000	2000	3000	5000	8000	10000	20000
rotate speed rpm/min	0.3-3	0.2-2	0.09-0.9	0.09-0.9	0.05-0.5	0.05-0.5	0.05-0.5	0.02-0.2	0.02-0.2	0.02-0.2
turning speed rpm/min	by manual	by manual	0.42	0.4	0.35	0.23	0.2	0.2	0.2	0.15
turret turning angle °	0-90	0-90	0-90	0-90	0-120	0-135	0-135	0-135	0-135	-45-90
turret diameter mm	φ400	φ600	φ1000	φ1200	φ1250	φ1400	φ1500	φ1600	φ2000	φ2500
rotate motor power kW	0.18	0.18	0.75	1.1	1.1	1.1	1.5	3	3	5.5
turning motor power kW	/	/	0.75	1.1	1.5	2.2	3	3	4	11
speed adjustment	AC frequency converter stepless speed adjustment
max eccentricity mm	100	150	150	150	200	200	200	200	200	200
max distance of gravity centre mm	200	200	200	200	250	300	300	400	500	600

The machine is made up of power box, cross beam, rotary plate, press device and tailstock. We can supply double column single rotary type and double column double rotary type.

The machine makes the work piece being in the best welding position by rotate, turn and lift it properly.

The reducer is circle-arc tooth type which has large output torque, and can well meet the rotary and turning requirement.

The imported technology for frequency converter can realize the working plate's stepless speed adjustment, with wide speed adjustment range, high precision and steady torque output.

The electric control system is main control cabinet plus a distant control box, with 15m wire.
