Tilt 1000KG Welding Rotary Table 1200mm 200mm 1T

Ask Lasest Price
Brand Name :	YAOQIANG
Model Number :	HB
Certification :	CE ISO
Price :	US $1,500-30,000/ Piece
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100pcs/month
Delivery Time :	10 days

Add to Cart

Product Details
Company Profile

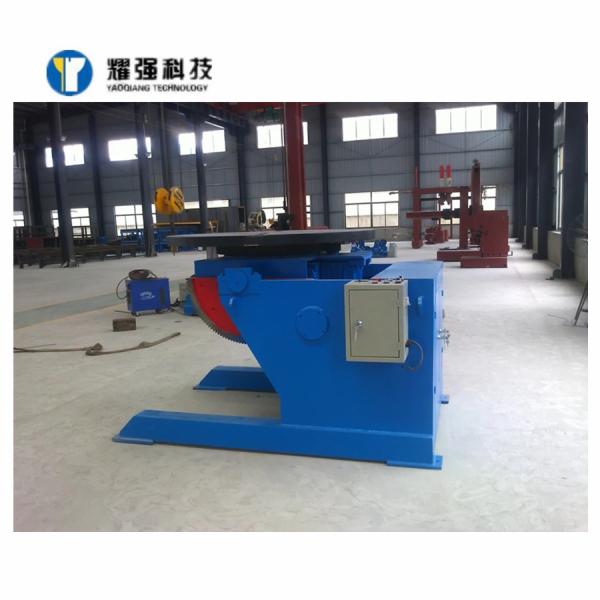

Tilt 1000KG Welding Rotary Table 1200mm 200mm 1T

Tilt and rotate 1000KG Welding Positioner AC Frequency Welding Turning table

What is a welding positioner?
In order to work at the correct angle, welders use welding positioners to fix the work piece and rotate the pipe or other work piece.
The welding positioner is designed to ensure that the workpiece is always in the most favorable welding position.

Model	HB	HB	HB	HB	HB	HB	HB	HB	HB	HB
Model	1	3	6	10	20	30	50	80	100	200
Max. load kg	100	300	600	1000	2000	3000	5000	8000	10000	20000
rotate speed rpm/min	0.3-3	0.2-2	0.09-0.9	0.09-0.9	0.05-0.5	0.05-0.5	0.05-0.5	0.02-0.2	0.02-0.2	0.02-0.2
turning speed rpm/min	by manual	by manual	0.42	0.4	0.35	0.23	0.2	0.2	0.2	0.15
turret turning angle °	0-90	0-90	0-90	0-90	0-120	0-135	0-135	0-135	0-135	-45-90
turret diameter mm	φ400	φ600	φ1000	φ1200	φ1250	φ1400	φ1500	φ1600	φ2000	φ2500
rotate motor power kW	0.18	0.18	0.75	1.1	1.1	1.1	1.5	3	3	5.5
turning motor power kW	/	/	0.75	1.1	1.5	2.2	3	3	4	11
speed adjustment	AC frequency converter stepless speed adjustment
max eccentricity mm	100	150	150	150	200	200	200	200	200	200
max distance of gravity centre mm	200	200	200	200	250	300	300	400	500	600

Features of welding positioner:
1. Eliminate waste generated during welding of pipes or tanks, and the positioner improves productivity.
2. The welding positioner ensures as much arc time as possible.
3. The positioner allows the welder to manipulate the parts faster.
4. Large parts only need to be positioned by one operator, and there is no need for multiple people to reposition parts.
5. Save labor and time, improve welding quality.

Features of welding positioner turntable:

1. The carrying capacity is from 2 tons to 500 tons

2. Can tilt and rotate

3. Enhance security

4. Allow skilled and entry-level welders to perform high-quality spin welding

5. Improve employee morale

6. Use semi-automatic functions to limit worker fatigue and increase production speed

7. It can be equipped with manipulator to realize automatic welding

Our services:
1. Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance. We have established worldwide network to guarantee our timely response for your any demand no matter where you are. <o: P>
2. Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
3. English Manual:
We have Mannual to show you along with the machine. So you can learn this from the existing document to deeper your knowledge and understanding.
4. Face to face to teacing:
Through internet video face to face for machine teaching, because of the high development in internet, the world has become smaller and you can easy contact us if any assistance needed. <o: P>
5. Through all the ways, we will guarantee the service quality and ensure you will be well helped anything anywhere.
6. Warrenty
The equipment guarantee period is one year. During this period, for the breakdown not caused by mis-operation by user, we will be responsible for repair and replace. After the guarantee period, our companies will also watching for customer need and maintenance.
7. Equipment quality commitment
All the products our company produced are compliant to national and enterprises standard.
Our products should meet all the technical requirement and parameters, and ensure the safe and stable function.
