    7000mm Welding Manipulator

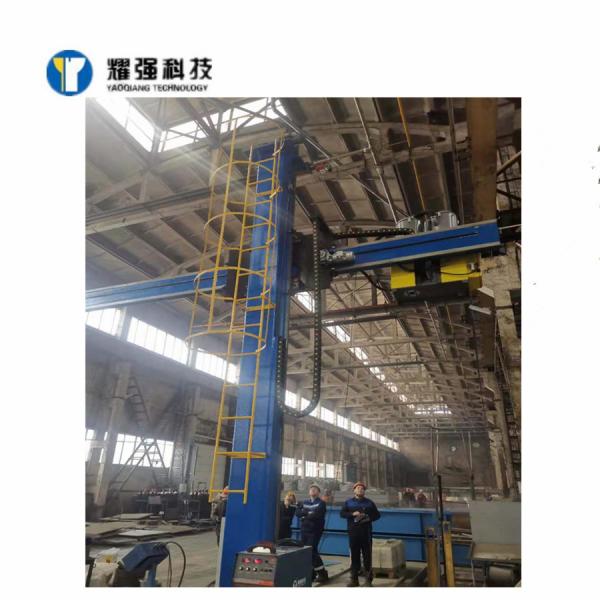

    HJ7060 Welding Manipulator Movable And Rotary Type With Flux Recovery And Electrical Control System

    HJ7060 type welding manipulator guiding seat has good force bearing ability , steering wheel has wide touch face, transmission is smooth and reliable.


    The equipment is mainly composed of the column, arm , guiding device , lifting mechanism and ladder barricades and etc.


    Column is rectangular beams, rectangular form of dual-rail structures , rail made ​​of high-quality carbon steel. Column uses sheet metal assembly form, welded and removed stress before machining.


    Column and seat clamp mode: each rail has three clamping surface , representing a more stable and reliable way than that of triangular rail .


    HJ7060 type welding manipulator( move and rotary type)

    No.ItemUnitHJ7060
    1Equipment size Heavy type
    2Arm lift strokemm7000
    3

    Arm extension stroke

    mm6000
    4Arm guide rail widthmm35
    5Standing column guid rail widthmm35
    6Guide wheel seat supporting way Rectangle guide rail, three facet supporting.
    7Arm extension speedmm/min120-1200
    8Drive way Rack and pinion pair
    9Speed adjustment way AC frequency stepless adjustment
    10Arm extension motor powerkw0.55
    11Arm lifting speedmm/min500
    12Drive way chain wheel and chain pair
    13Arm front end load capacitykg120
    14Control wire lengthm15
    15Equipment structure type movable and rotary type
    16Cross precision adjustor strokeUp and downmm100
    Left and rightmm100
    17cylinder diameter adapted mmΦ1000∽φ7000


    Horizontal movement of the arm is via a dedicated inverter motor + worm gear rack drive gear reducer, the movement speed can be adjusted within a certain range depending on the welding needs.


    Arm and the column are made of large cross-section rectangular beam structure to ensure that it has good rigidity. Rail track processing is large gantry milling, with a small amount of machining distortion , higher surface accuracy.


    The front of welding arm is fitted with electric cross regulatory agencies, to align torch into needed welding seam position , easy to adjust.


    Column top of the welding manipulator is fitted with arm lifting mechanism , driven by an AC motor braking which drives worm reducer.


    Using worm and AC brake motors as double safety device . Another feature on the guide bar is Ratchet spine Article mechanism. When the chain may occur accident due to greater external impact (safety factor of 10 times), the Ratchet spine article mechanism will lock tight the guide seat and arm on the column, prevent cross arm falling accidents.


    With ladder and top guardrail and other assistant devices, easy for user maintenance, and ensure safety.


    The equipment foundation is installed on the rails. And the rails are fixed with press plate and expansion bolt. For installation, it must ensure the 2pcs rails straightness and parallelism.


    Flux recovery and transit in one machine:

    Flux recovery and transit in one machine
    No.ItemUnit50E2
    1ModelYS-HS150A
    Motor powerKW4
    2Gas source pressureMPa0.2-0.8
    3Max. recovery quantityKG50
    4Vacuum degreeKPa14.4

    ( 1 ) YS-HS150A flux recovery and conveyor machine is designed for metal structure welding industry, and specially for unmelted flux recovery, reciprocating cycle use in cross manipulator and large submerged arc welding machine working process.

    ( 2 ) Flux recovery of this welding manipulator unite the essence of YS-FHS, YS-H type flux recovery machine. The machine line is the optimal combination of them. Solve the problems found in other recycling equipment operating on cross welding manipulator and large welding machines. It increases the recovery distance and transportation distance. Ensure the recovery and transport effects, save time and effort. This machine is more advanced and ideal transport flux recovery device of choice for cross- operating machines and large submerged arc welding equipment on the market currently.

    ( 3 ) The machine will increase productivity, reduce men’s working strength. So it is good for making environment tidy, pollution and throw reduction.
