AC Frequency Converter Submerged Arc Automatic Welding Machine H
Beam Production Line
The welding machine has a simple and reliable structure and a
clever layout.
Main drive of gantry welding adopts imported AC frequency converter
to control the synchronous speed-regulating drive on both sides,
with stable speed and reliable linear speed digital display.
The H-beam submerged arc welding machine is equipped with a
three-axis mechanical tracking arc guide device, pneumatic tracking
up and down, floating tracking left and right, to ensure that the
welding gun is accurately centered on the weld. The switch-on arc
welding power source is installed on the gantry and moved along the
gantry, so that the control cable and the welding cable are short,
the response is fast, the voltage drop is small, and the welding
current is stable.
The welding control and the door frame control are integrated, and
the operation is simple. The welding arm cable adopts drag chain
form, which is neat and safe.
| Model | web height mm | flange width mm | welder model | welding type | welding speed | welding torch return speed | rails' distance | overall power |
| LHA-4000 | 200-1500 | 200-800 | MZ-1000 | boat-type welding | 0.15-1.5m/min | 3m/min | 4000mm | 10KW,exclude welder power |
| SXBH-20 | 200-2000 | 200-800 | 2000mm
|
Characters:
1. The H beam gantry gate welding machine has two structures:
Gantry gate move type & double cantilever move type.
2. Gantry gate or cantilever drive method: AC motor and R series
worm reducer.
3. Welding speed: 0.15~1.5m/min.
4. Arc guide frame head function is to mechanically track up and
down, left and right.
5. Imported frequency converter is able to realize gantry gate or
cantilevers stepless speed adjustment, with wide speed adjustment
range, high accuracy and constant output torque.
6. Electrical control cabinet includes main control cabinet and
remote operation box.
7. Two work-piece at one time.
Documents:
1, Instruction manual, including electric and hydraulic
illustrative diagram and easy damaged parts list.
2, User manual of frequency converter, hydraulic bump station.
3, Packing list
4, Certification
5, Foundation drawing for installation.
Supply scope:
1,Gantry gate unit:Gantry gate,travel device,lateral sliding
device,feeding wire wheel and pipe accessories.
2,Welding arm and carriage:Welding arm,motor transmission
device,move device and accessories (2 sets each).
3,Arc guide device:Welding gun,mechanical adjusting unit and
feeding wire machine (2 sets each).
4,Flux recovery system:100kg flux recovery machine,separate
material barrel,flux hopper,flux recoveryand transmission pipe.
5,Electric control system:Electric control cabinet,AC frequency
converter,operation box,lighting,warning light.
6,Pipe and wire system:Welding machine power wire,control
wire,welding cable,gantry gate control cable,air source
pipe,suspending sliding frame.

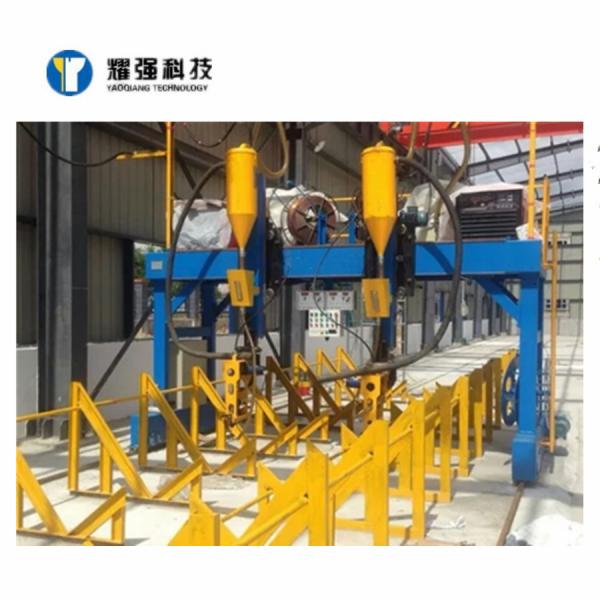

LHA-4000 Gantry type H beam automatic welding machine
1.Purpose and working principle
This machine is an ideal equipment for automatic submerged arc
welding of H steel. The work piece is placed on the bracket of the work piece (Fig. 1), Tilt 45 degrees to make the weld to be the position
of the ship. The welding arm with the embedded welding head can be horizontal
and up and down movement on the cross beam of the gantry frame, so that the welding nozzle on the head can be aligned to the
welding seam. The equipment at the front end of the welding arm has a welding
machine automatic tracking device, and then the gantry frame goes in a straight line on the rail, automatic welding. This machine is equipped with automatic welding, recycling and
processing equipment.
2.Technical parameter
| Gantry frame motor total power | 3.7KW(Does not include the flux recovery machine power) |
| Gantry frame gauge | 4000mm |
| Gantry frame height | 2500mm |
| Welding speed | 150-1000mm/min |
| Selection of welding machine | MZ-1250 CNC submerged arc welding machine *2 sets (optional) |
| Welder recovery machine model | ZH-100* 2 sets |
3.Pictures of main parts:
