H Beam Steel Saw Welding Gantry type Welding Machine with MZ1000
Submerged arc welding power source
This machine is designed according to special character of vessel
welding,its mainly consist of Gantry frame,slide structure,welding
gun tracking device,Flux recovery system,electrical control system
and Submerged welding machine
SAW Advantage
One of the top advantages of submerged arc welding is that it
prevents hot materials from splattering and splashing onto workers.
Another benefit is that the flux prevents high levels of radiation
from being emitted into the air. Submerged arc welding does not
require added pressure to weld because it is already generated by
the electrode. This application is excellent for quickly welding
together thin metal sheets and creates a secure fusion between
welds. This application also produces high productivity, fast
travel speed, high repeatability, and quality results.
After-Sales Service.
If during warranty period: 1. If any damage for accessories or
spare parts,we will provide for free. 2. If any damage for machine
and machine doesn't work,we will send our engineer to repair. But
customer needs to pay flight tickets,food and living. If beyond
warranty period: 1. If any damage for accessories or spare parts,we
will provide for free.But customer needs to pay flight charge. 2.
If any damage for machine and machine doesn't work,we will send our
engineer to repair. But customer needs to pay flight
tickets,food,living and Salary (USD 80 per day).
Technical parameters
| Web beam height: | 200-1800mm |
| Web beam thickness: | 6-32mm |
| Flange beam width: | 200-800mm |
| Flange beam thickness: | 6-40mm |
| H beam length: | 4000-15000mm |
| Assembling speed: | 0.5-8m/min |
| Input roll: | 3000mm×3 |
| Output roll: | 3000mm×3 |
| Adjust method: | AC converter |
| Power: | 9 Kw |
Supply scope.
Assembly machine :main machine,gantry bracket,flange synchrony
clamping system,main transmit motor and reducer etc
Input rolls :drive and idler rolls 3000mm*3 sets and 2 sets bar
system
Output rolls:drive and idler rolls 3000mm*3 sets
Hydraulic system :oil pumping stations,high pressure rubber tube
and 8 hydraulic pots etc
lectrical system :electric cabinet,Electric control panel ,AC
inverter(Schneider)
Automatic spot welding system:2 sets CO2 NB-350A welding sources
etc.
Spare parts :3 buttons,2 HH54PDC24V relay, three 4A and 6A fusible
core.
Instruction book(including electrical principle diagram,Hydraulic
pump principle diagram,easy abrasion list etc)
Inverter instruction book ,Hydraulic pump instruction book, PLC
program instruction book.
Qualified certificate,shipping list,pedestal diagram.

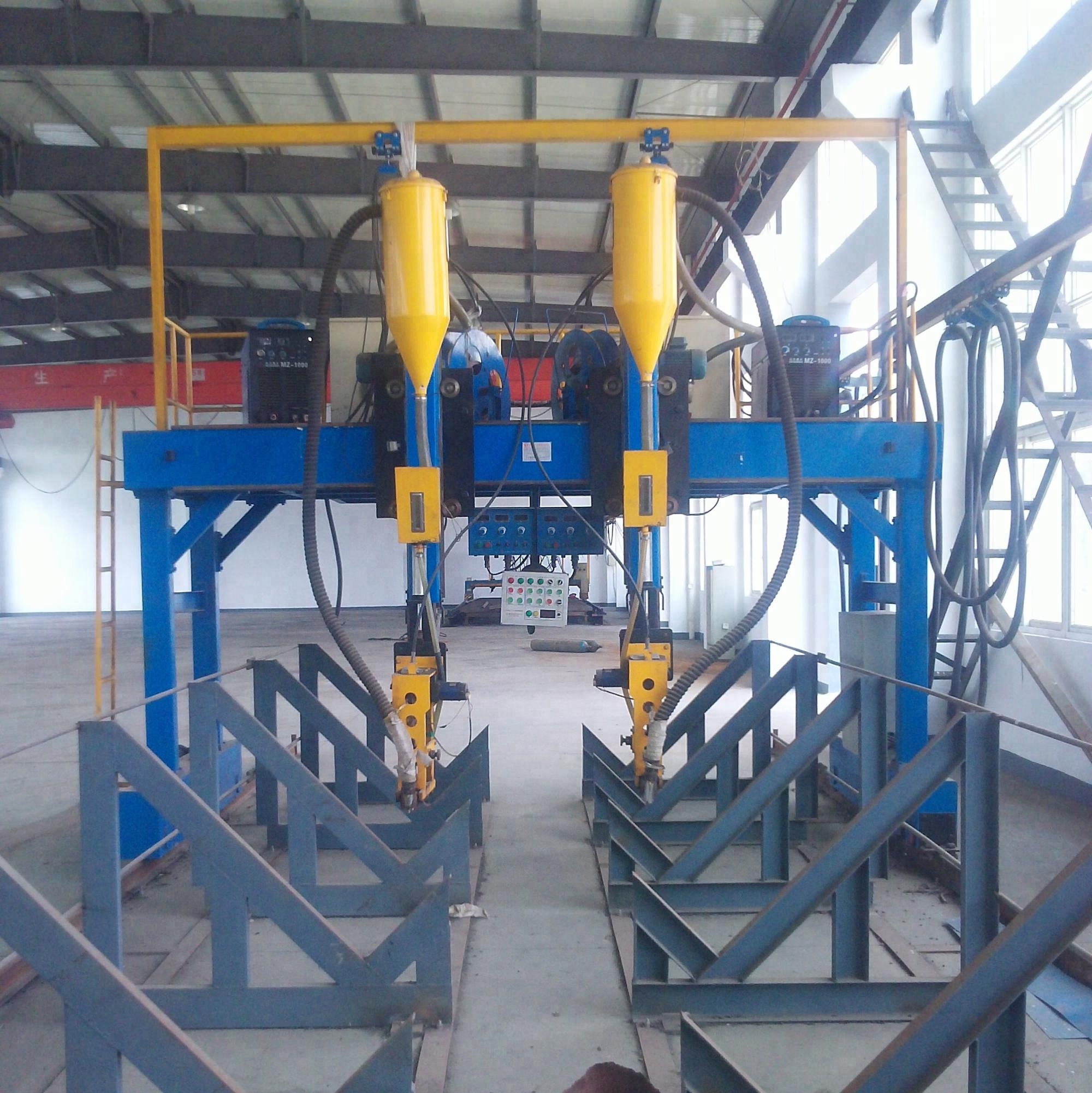

The type of gantry gate welding machine is designed according to
the special requirement of steel H beam boat-shape welding and our
extensive experience in this area.
Gantry gate welding machine can weld two work pieces at one time.
It has simple and reliable structure and smart layout. The main
transmission function is realized by imported AC frequency converter to control both sides' synchronous speed-adjusting drive, with
stable speed and digital display of linear speed, which is
reliable.
Three axis mechanically track guide-arc devices, while the up and
down is pneumatic tracking, the left and right floats tracking,
thus to ensure welding gun to centralize the welding seam
accurately.
The sub-merge arc welding power setup device is on the gantry gate,
and moves along. In this way, the control cable and welding cable
are short, and response fast, with small pressure drop and stable
welding currency.
Welding control and gate frame control are integrated and easy to
operate. The cable in welding arm is in the form of imported drag
chain, neat and safe.
Supply scope:
1, Gantry gate unit: Gantry gate, travel device, lateral sliding
device, feeding wire wheel and pipe accessories.
2, Welding arm and carriage: Welding arm, motor transmission
device, move device and accessories (2 sets each).
3, Arc guide device: Welding gun, mechanical adjusting unit and
feeding wire machine (2 sets each).
4, Flux recovery system: 100kg flux recovery machine, separate
material barrel, flux hopper, flux recovery and transmission pipe.
5, Electric control system: Electric control cabinet, AC frequency
converter, operation box, lighting, and warning light.
6, Pipe and wire system: Welding machine power wire, control wire,
welding cable, gantry gate control cable, air source pipe, and
suspending sliding frame.
7, Welding system: MZ-1000 sub merge arc welding machine*2sets.
FAQ
− Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified
engineers and experts, who have been working in the filed for more
than ten years.
− Q: What is the application of our products?
A: H beam SAW Welding
− Q: What can we offer our customers?
A: The products we offer are exactly according to CE and ISO
Standard.
− Q: How long is the product warranty?
A: Warranty period of one year.
