    CE 3 In 1 H Beam Welding Line 6-20mm , H Beam Flange Straightening Machine

    Ask Lasest Price
    Brand Name : YAOQIANG
    Model Number : YQPJ
    Certification : CE,ISO
    Price : US $42,000-55,000/ Piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10pcs/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    CE 3 In 1 H Beam Welding Line 6-20mm , H Beam Flange Straightening Machine

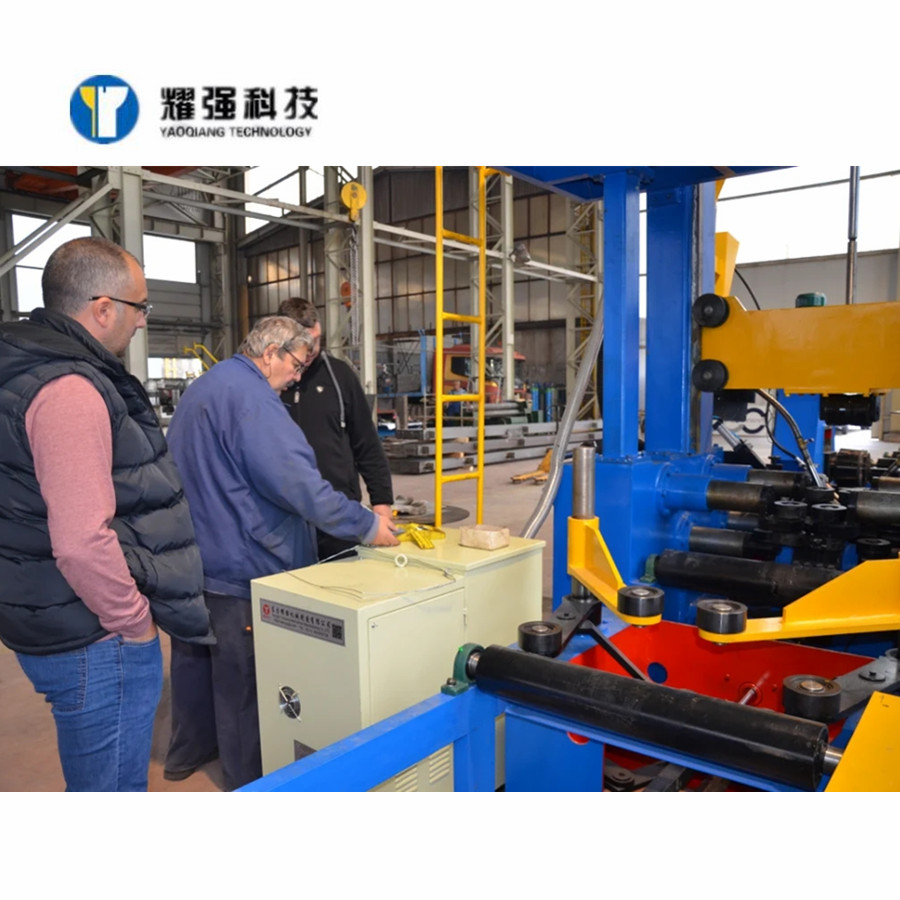

    H Beam Flange Web Automatic Centering Assembly Spot Welding And Hydraulic Straightening Machine


    This is a H-shaped steel assembly, straightening and welding integrated machine that we have applied for a patent and obtained CE certification. At present, it has been widely praised at home and abroad, and this three-in-one machine 3in1 welding line has been exported to many countries.


    The machine mainly includes:
    Automatic spot welding assembly machine
    Hydraulic straightening machine (can be modified into a small straightening machine for independent use according to customer requirements)
    Submerged arc welding single arc double wire or single arc single wire automatic welding machine


    TypeWeb heightThickness of the webWelding speedFlange widthThickness of flangeOverall power
    YQPJ10001000mm6-16 mm0.35-3 m/min200-800 mm6-20 mm13.4 kw
    YQPJ12001200mm
    YQPJ15001500mm

    Supply matching:
    Frame;
    Console;
    Pre assembled mechanism;
    Feed roller table;
    Delivery roller table;
    2 sets of welding machine;
    Hydraulic station;
    Mushroom shaped deformation correcting mechanism for beam;
    Welding console -2 sets for wire feed mechanism;
    Wire box -2 parts;
    Hydraulic hose;
    Flux cycle system ----2 set;
    Work platform and ladder;

    The supply does not include:
    1. foundation;
    2. connect to the power and air source of the equipment;
    3. equipment grounding;

    4. welding wire or flux etc





    .
