Hydraulic 3 In 1 H Beam Welding Line 380V To 440V

    Buy cheap Hydraulic 3 In 1 H Beam Welding Line 380V To 440V from wholesalers

    Buy cheap Hydraulic 3 In 1 H Beam Welding Line 380V To 440V from wholesalers
    • Buy cheap Hydraulic 3 In 1 H Beam Welding Line 380V To 440V from wholesalers
    • Buy cheap Hydraulic 3 In 1 H Beam Welding Line 380V To 440V from wholesalers

    Hydraulic 3 In 1 H Beam Welding Line 380V To 440V

    Ask Lasest Price
    Brand Name : YAOQIANG
    Model Number : YQPJ
    Certification : CE,ISO
    Price : US $42,000-53,000/ Piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10pcs/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Hydraulic 3 In 1 H Beam Welding Line 380V To 440V

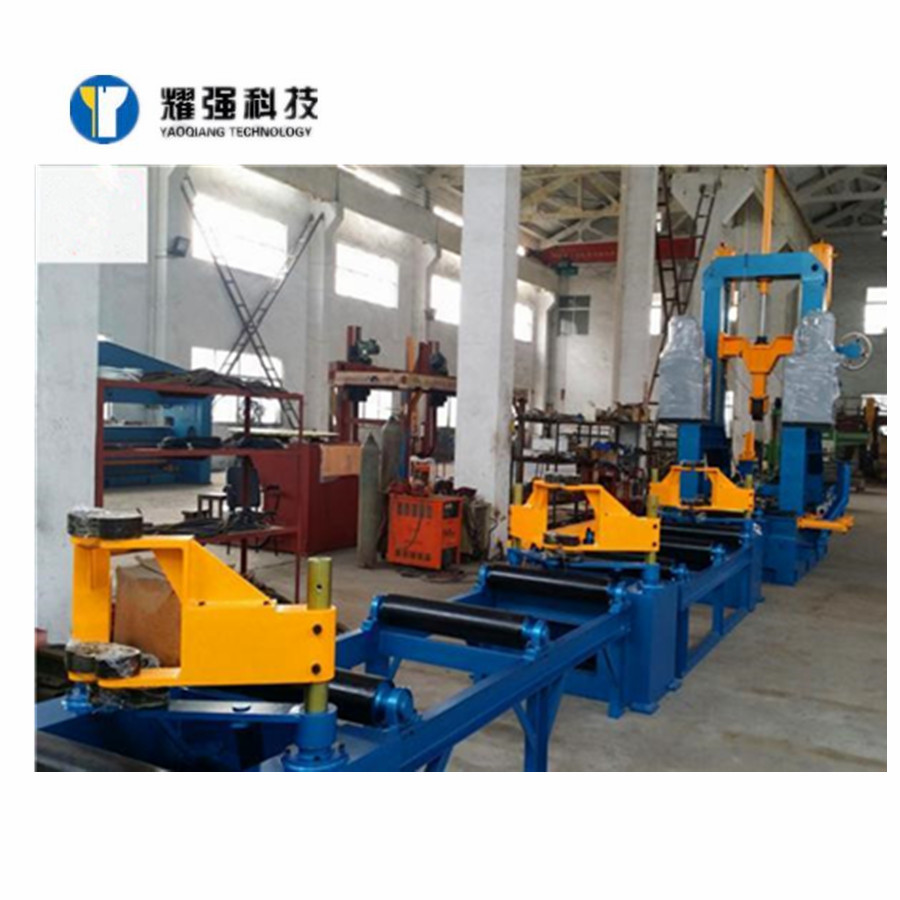

    H Beam Assembly Straightening Welding 3 in 1 Beam Welding Line


    Assembly Straightening Welding 3 in 1 Beam Welding Line is a special equipment for assembling, welding and leveling H-shaped steel.


    Equipment cost, saving equipment installation space, are the features of this 3 in 1 beam machine (H-shaped steel and T-shaped steel)


    Technical Parameters

    Modelweb heightweb thicknesswelding and straightening speedflange widthflange thicknessoverall power
    YQPJ10001000mm6-16mm0.35-3m/min200-800mm6-20mm13.4kw
    YQPJ12001200mm6-16mm0.35-3m/min200-800mm6-20mm13.4kw
    YQPJ15001500mm6-16mm0.35-3m/min200-800mm6-20mm13.4kw

    Composition:
    1.Main machine: including H steel assembly, welding, straightening, roller conveying and so on.
    2.Electrical control system: main control cabinet, set the PLC program system, touch screen display lamp
    3.Erecting mechanism: Web clamping, wing plate clamping, lower pressing device
    4.Lifting mechanism: inputting roller table device;
    5.The discharging mechanism (including lifting mechanism 2): outputting roller table device;
    6.Hydraulic system: oil cylinder, hydraulic pump station, high-pressure oil pipe lamp
    7.Alignment mechanism: cylinder lifting device
    8.Wire feeding mechanism assembly:
    9.Work platform and escalator: accessories and so on
    10.Welding power supply two: power supply, control box, welding cable, control cable and so on
    11.Flux recovery device two sets: whirlpool pump, recovery device, funnel, etc.

    This 3 in 1 assembly straightening welding machine we have sold to many countries: Russia,India,Oman,Pakistan,etc.


    Technical Parameters

    Modelweb heightweb thicknesswelding and straightening speedflange widthflange thicknessoverall power
    YQPJ10001000mm6-16mm0.35-3m/min200-800mm6-20mm13.4kw
    YQPJ12001200mm6-16mm0.35-3m/min200-800mm6-20mm13.4kw
    YQPJ15001500mm6-16mm0.35-3m/min200-800mm6-20mm13.4kw
    Supply spares:
    No.Name
    1welderMZ-1000(optional,also can use CO2 welder)
    2
    Welding machine control box
    MZ-1000
    3
    Inverter manufacturers
    11KW,2.2KW HUICHUAN
    4
    Major electrical equipment manufacturers
    SIEMENS, OMRON (Japan)
    5Hydraulic parts manufacturersTAIWAN
    6main motor supplier
    NANTONG
    7Wing web centering motor2 sets NINGBO
    8Main reducer manufacturers
    CHANGZHOU
    9recovery equipment
    2 sets WUXI

    Our services:
    1. Oversea engineers:
    We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance. We have established worldwide network to guarantee our timely response for your any demand no matter where you are.
    2. Learning trip:
    We welcome engineers from your side to learn the technical design and normal maintenance here, this will help you easyly to understanding.
    3. English Manual:
    We have Mannual to show you along with the machine. So you can learn this from the existing document to deeper your knowledge and understanding.
    4. Face to face to teacing:
    Through internet video face to face for machine teaching, because of the high development in internet, the world has become smaller and you can easy contact us if any assistance needed.
    5. Through all the ways, we will guarantee the service quality and ensure you will be well helped anything anywhere.
