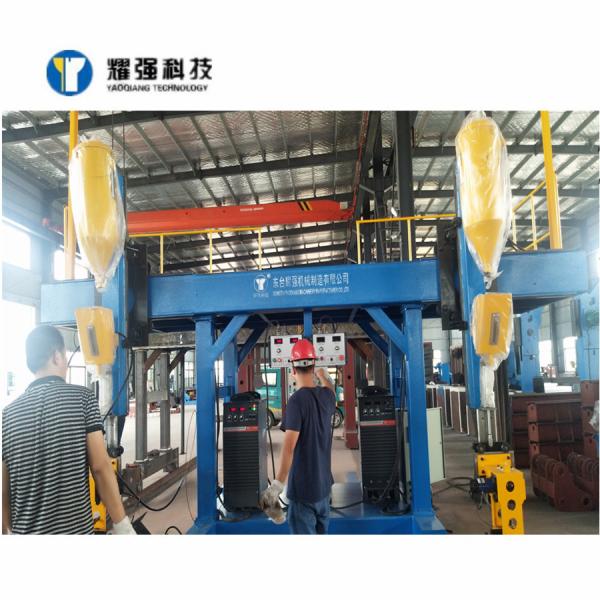

High Reliabile XBH-25 External Double Cantilever Welding Machine
For H Beam Box Beam
The features of XBH-25 type double cantilever welding machine
series are:
1. High reliability welding power supply, stable cantilever gantry
frame walking, the main factors to ensure H-beam welding to achieve
excellent weld forming
2. Smooth Gantry rack walk:
3. The cantilever gantry rack is controlled by famous brand
frequency converter, which ensures the stability of welding
running.
4. Adjustable mechanical tracking mechanism of Gantry welder
5. XBH-25 External Double Cantilever Welding Machine can
automatically correct the deviation between the height direction
and the length direction of the work-piece, so as to ensure good
weld forming.
6. Tracking mechanism can realize back and forth welding -
cantilever gantry welding can be welded forward and backward, no
empty return time, improve the efficiency of processing, reduce
processing time.
Machine consists of:
| Item | Qty | Remark |
| Machine tool body (Gantry rack body) | 1set | |
| Welding control box | 2sets | |
| Welding machine head | 2pcs | |
| Welding power supply | 2pcs | |
| 100-250kg universal welding wire disc | 2pcs | |
| Flux recovery machine | 2pcs | |
| Walking track | 18Meters | Self-prepared |
XBH-25 type double cantilever welding machine head adopts special
type steel welding machine head, machine head adopts double rotary
adjustable mechanical tracking mechanism.
According to the characteristics of arm movement, the mechanism is
designed.
The machine head includes upper rotary mechanism, end locking
mechanism, upper and lower floating mechanism, lower rotary
mechanism, flux recovery-conveying mechanism, tracking wheel and
guide mechanism.
Electrical device and other components, the end locking mechanism
can make the tracking wheel travel to the end of the work-piece,
manually lock the machine head, so that the machine head can
maintain a state, complete the welding seam, reduce the workload of
manual repair welding, the whole machine head can also realize
round-trip welding, only by using the rotary mechanism to rotate
the machine head 180 degrees, and then recover the flux.
The position of pipe and flux conveyor pipe can be changed.
The welding machine head of section steel has the characteristics
of simple structure, convenient and reliable tracking in the
welding process.
Random technical documents
(1) user manual (equipment structure general drawing vulnerable
parts drawing) * 1 sets.
(2) electrical instructions for equipment: including electrical
schematics and wiring diagrams * 1 sets.
(3) control system operation manual * 1 sets
(4) equipment instruction manual * 1 copies.
(5) equipment qualification certificate * 1 copies.
(6) shipping list * 1 copies
