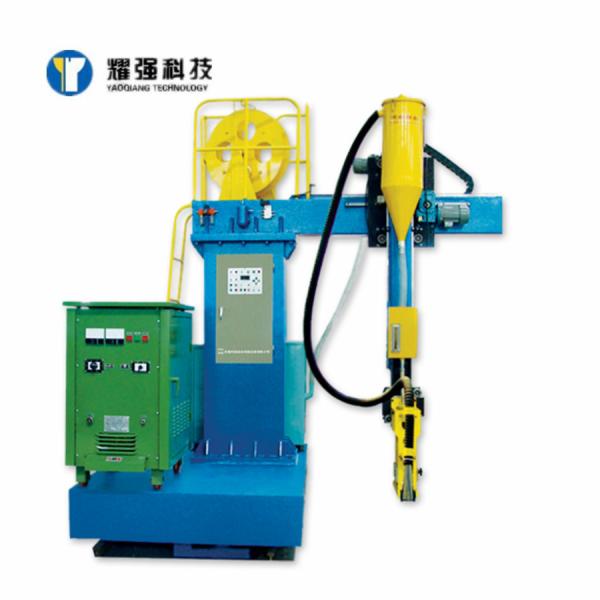

SESW Welding Cantilever Fuse Electroslag Welding Machine For Structural Beam

It is mainly used for the welding of bottom plate&cover plates of box beam and inside welding seam

Note:

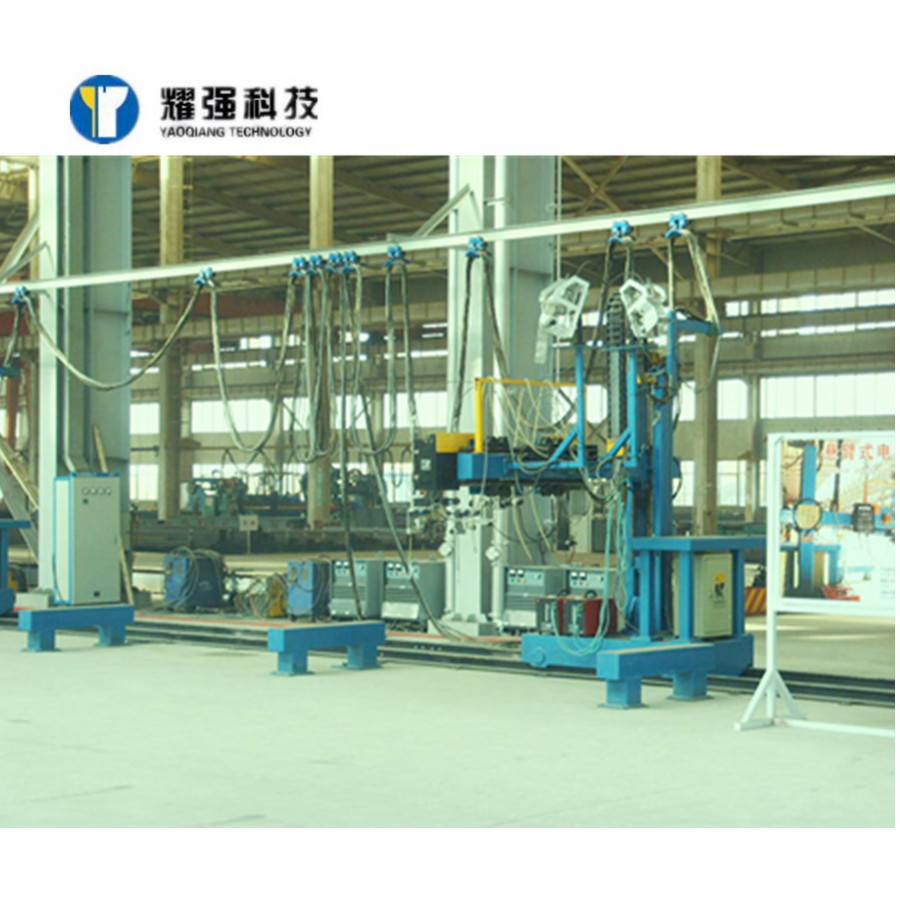

There are two welding areas on the heavy-duty production line.

Each welding area is composed of two sets of cantilever welding machines, two sets of 60° turning machines and one set of conveyors.

You can also choose LHC series cantilever gatry type welding machine:
LHC cantilever submerged arc welding machine is used for heavy steel production line and super high H-beam submerged arc welding.
1.The machine structure is cantilever arm table driven type.
2.The H beam gantry cantilever welding machine is composed of working table travel device, cantilever frame, welding arm elevator, horizontal travel device, arc guide device, flux recovery system, automatic submerged arc welding system, electrical control system and etc.
3.The frequency conversion motor driving system, drags the working table move as a unit, drives the guide arc device. The spring extension device make the guide arc device to force guide arc wheel working along the boat shaped seam.
4.Flux recovery system effectively recover, separate used flux, and eliminate useless slag. It can ensure safe re-use of the flux.
